TUKO HOME · TK-A19
Wallbox Duo 2
14–44 kW · Type2 · wall
Power14–44 kWConnectorType2FormwallListingCE · UL/ETL pending
MSRP €1,510 · placeholder
TUKO Direct −10%€1,359
Your electric company may pay part of this back after installation — see your rebate
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- Rebate-eligible where your utility runs a program — check yours
- Ships with Type 2 (IEC 62196) for Europe
About
What this charger does

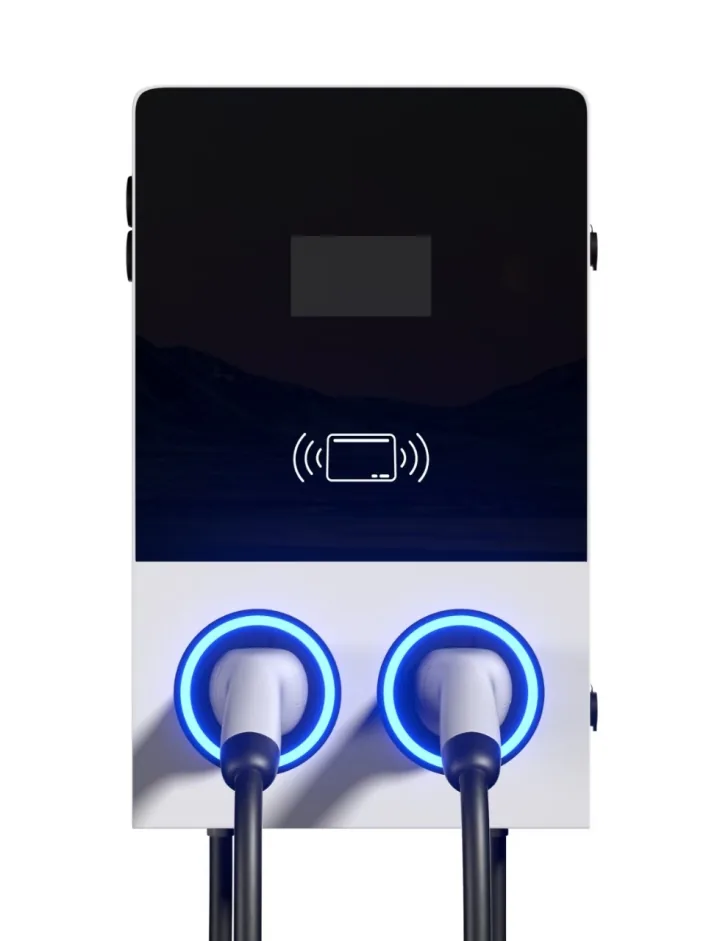

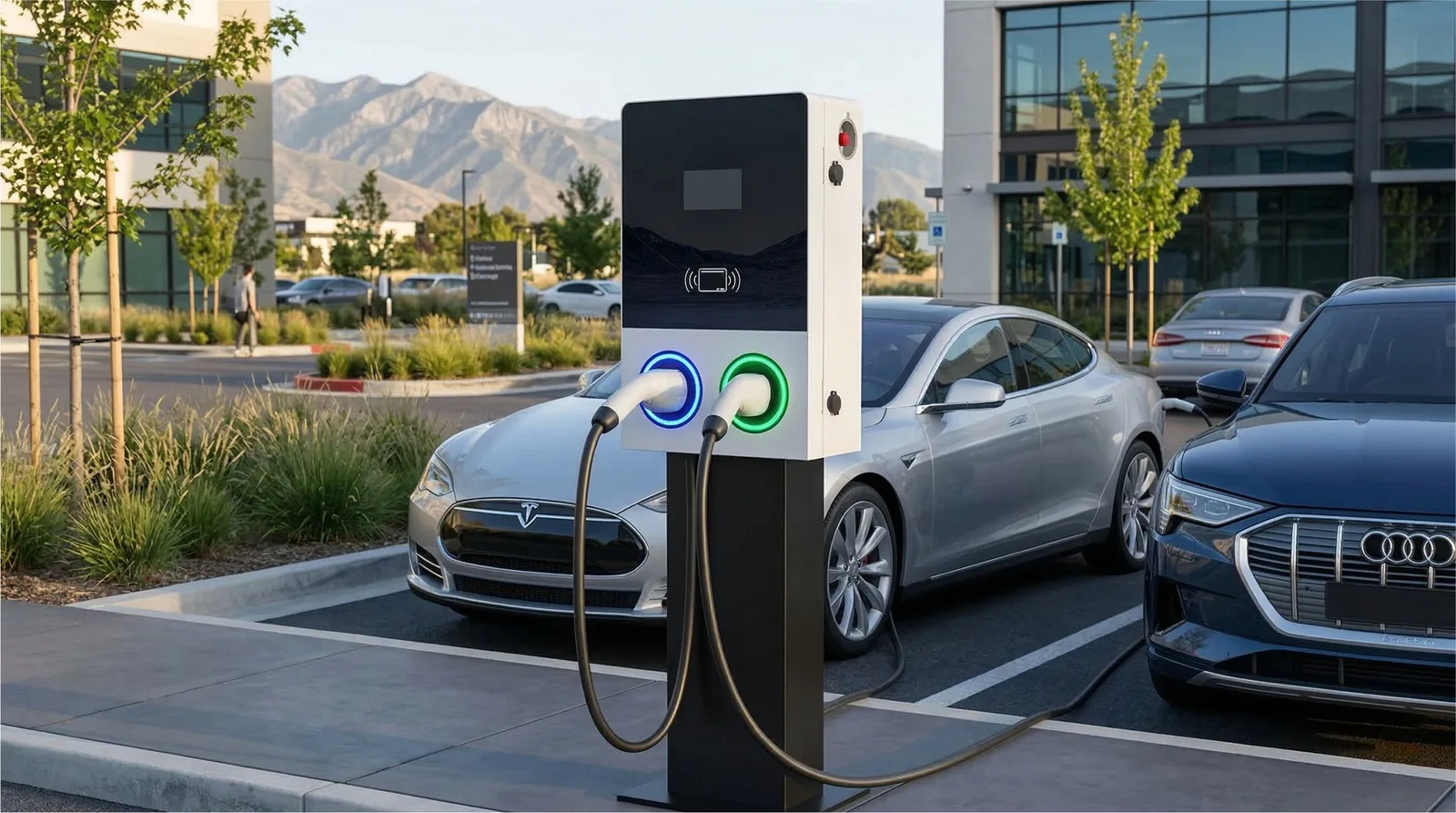

Dual-port wallbox that charges two vehicles at once, on the wall or on an optional pedestal. A three-color light shows the status of each port. Configurable from 7 + 7 kW up to 22 + 22 kW.
Features
What you get
- Household wall mounted AC charging station, can be installed with a column.
- Three color charging indicator light, indicating charging related values.
- 14KW, 22KW, 44KW power options, household charging station.
Configurations
Power options for Europe
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
Type2
| Power | Voltage | Current |
|---|---|---|
| 7 kW + 7 kW | 85V ~ 265V | 32A |
| 11 kW + 11 kW | 380V ± 10% | 32A |
| 22 kW + 22 kW | 380V ± 10% | 32A |
Specifications
At a glance
| SKU | TK-A19 |
|---|---|
| Supplier reference | 888017 |
| Power | 14–44 kW |
| Connector (Europe) | Type2 — Type 2 (IEC 62196) |
| Form factor | wall |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | Europe |

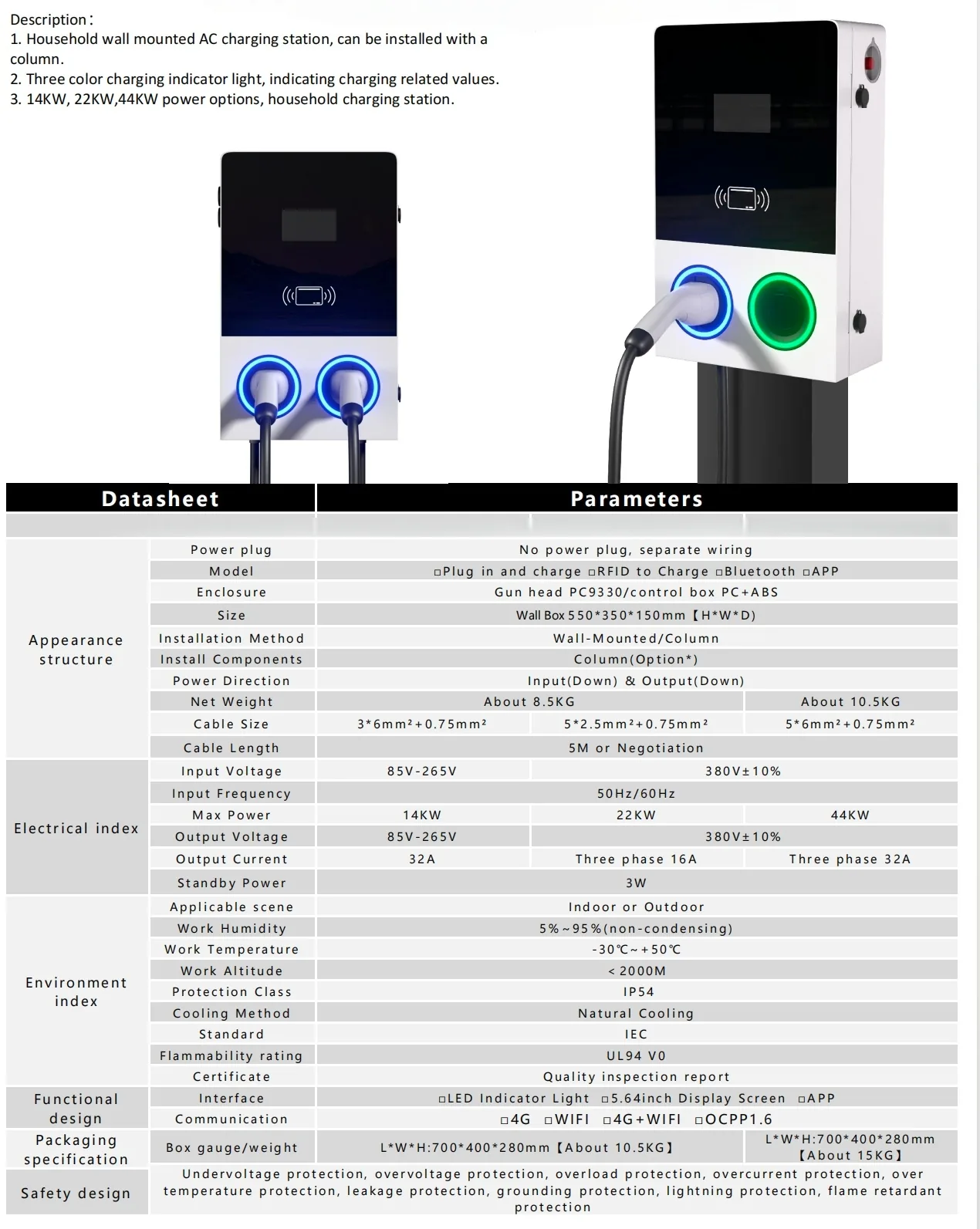

Full datasheet
| Appearance structure | Power plug | No power plug, separate wiring |
|---|---|---|
| Model | Plug in and charge / RFID to Charge / Bluetooth / APP (options) | |
| Enclosure | Gun head PC9330 / control box PC+ABS | |
| Size | Wall Box 550 × 350 × 150 mm (H×W×D) | |
| Installation Method | Wall-Mounted / Column | |
| Install Components | Column (Option*) | |
| Power Direction | Input (Down) & Output (Down) | |
| Net Weight | 14 kW/22 kW: About 8.5 kg; 44 kW: About 10.5 kg | |
| Cable Size | 14 kW: 3×6 mm² + 0.75 mm²; 22 kW: 5×2.5 mm² + 0.75 mm²; 44 kW: 5×6 mm² + 0.75 mm² | |
| Cable Length | 5 m or Negotiation | |
| Electrical index | Input Voltage | 14 kW: 85–265 V; 22 kW/44 kW: 380 V ±10% |
| Input Frequency | 50 Hz / 60 Hz | |
| Max Power | 14 kW: 14 kW; 22 kW: 22 kW; 44 kW: 44 kW | |
| Output Voltage | 14 kW: 85–265 V; 22 kW/44 kW: 380 V ±10% | |
| Output Current | 14 kW: 32 A; 22 kW: Three phase 16 A; 44 kW: Three phase 32 A | |
| Standby Power | 3 W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5% to 95% (non-condensing) | |
| Work Temperature | -30 °C to +50 °C | |
| Work Altitude | < 2000 m | |
| Protection Class | IP54 | |
| Cooling Method | Natural Cooling | |
| Standard | IEC | |
| Flammability rating | UL94 V0 | |
| Certificate | Quality inspection report | |
| Functional design | Interface | LED Indicator Light / 5.64 inch Display Screen / APP (options) |
| Communication | 4G / WIFI / 4G+WIFI / OCPP1.6 (options) | |
| Packaging specification | Box gauge/weight | 14 kW/22 kW: 700 × 400 × 280 mm (L×W×H), About 10.5 kg; 44 kW: 700 × 400 × 280 mm (L×W×H), About 15 kg |
| Safety design | Safety design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
