Portable L1
1.9–7 kW · Type1 · portable
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- Not typically covered by utility rebates (portable unit)
- Ships with Type 1 (SAE J1772) for United States
What this charger does

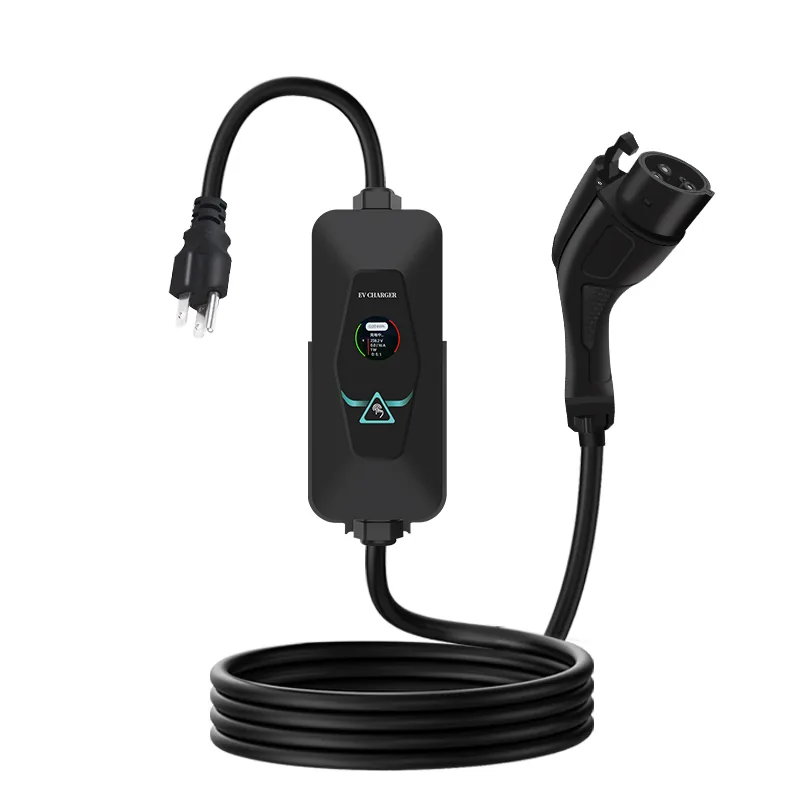

Portable Level 2 charger you keep in the trunk and plug in wherever you park. A 1.68-inch LCD shows live charging data, and you can dial the current down to match the outlet and schedule charging for off-peak hours. Comes with a wall hook so it doubles as a fixed charger at home.
What you get
- Portable AC can be charged with the vehicle, and after charging, it can be carried with the vehicle.
- A 1.68-inch LCD display screen provides a more comprehensive human-machine communication interface.
- Numerical screen display, displaying the relevant basic data of real-time charging of the charging gun.
- Current gear adjustment function and scheduled charging function.
- Free wall mounted back buckle, which can be used to fix the charging gun on the wall.
Power options for United States
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 1.92 kW | 120V | 16A |
| 3.84 kW | 240V | 16A |
At a glance
| SKU | TK-A01 |
|---|---|
| Supplier reference | 888001 |
| Power | 1.9–7 kW |
| Connector (United States) | Type1 — Type 1 (SAE J1772) |
| Form factor | portable |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

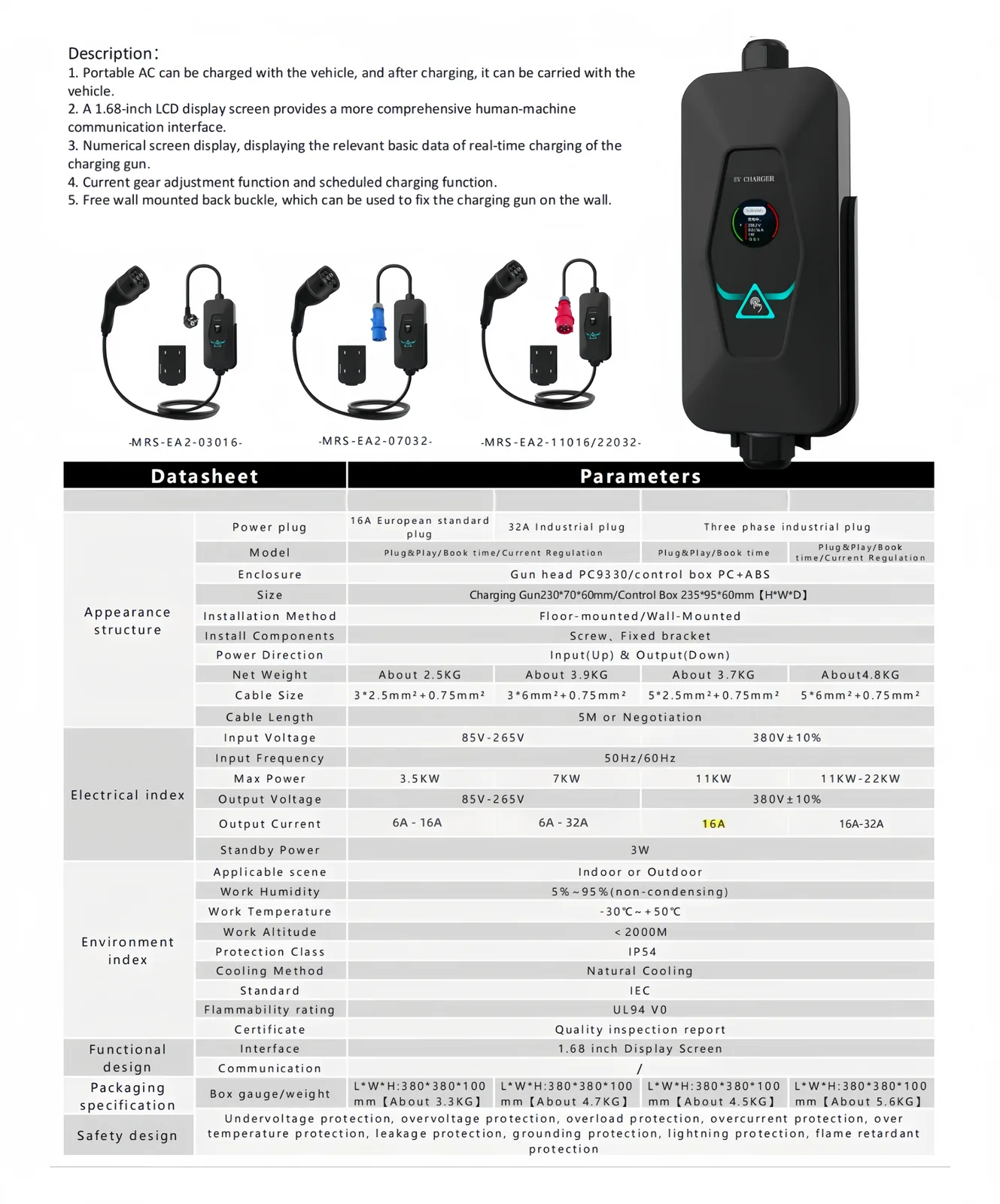

Full datasheet

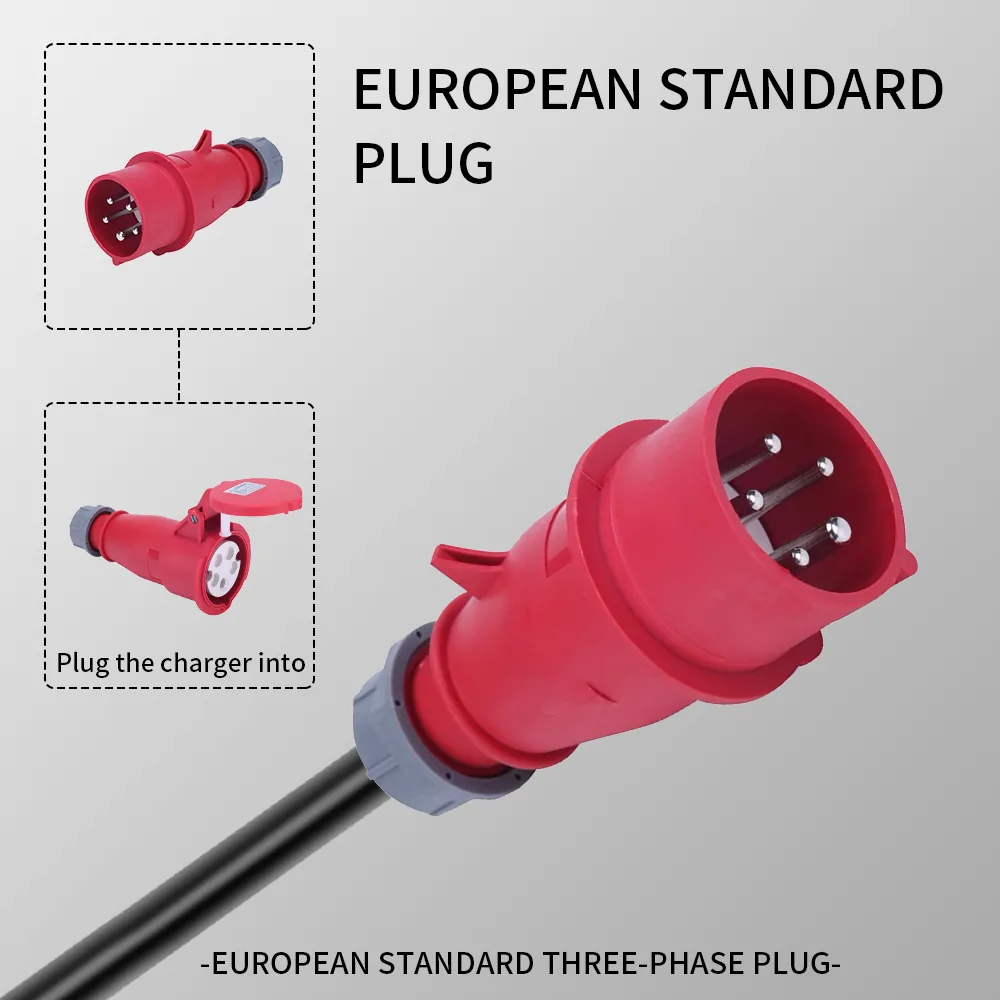

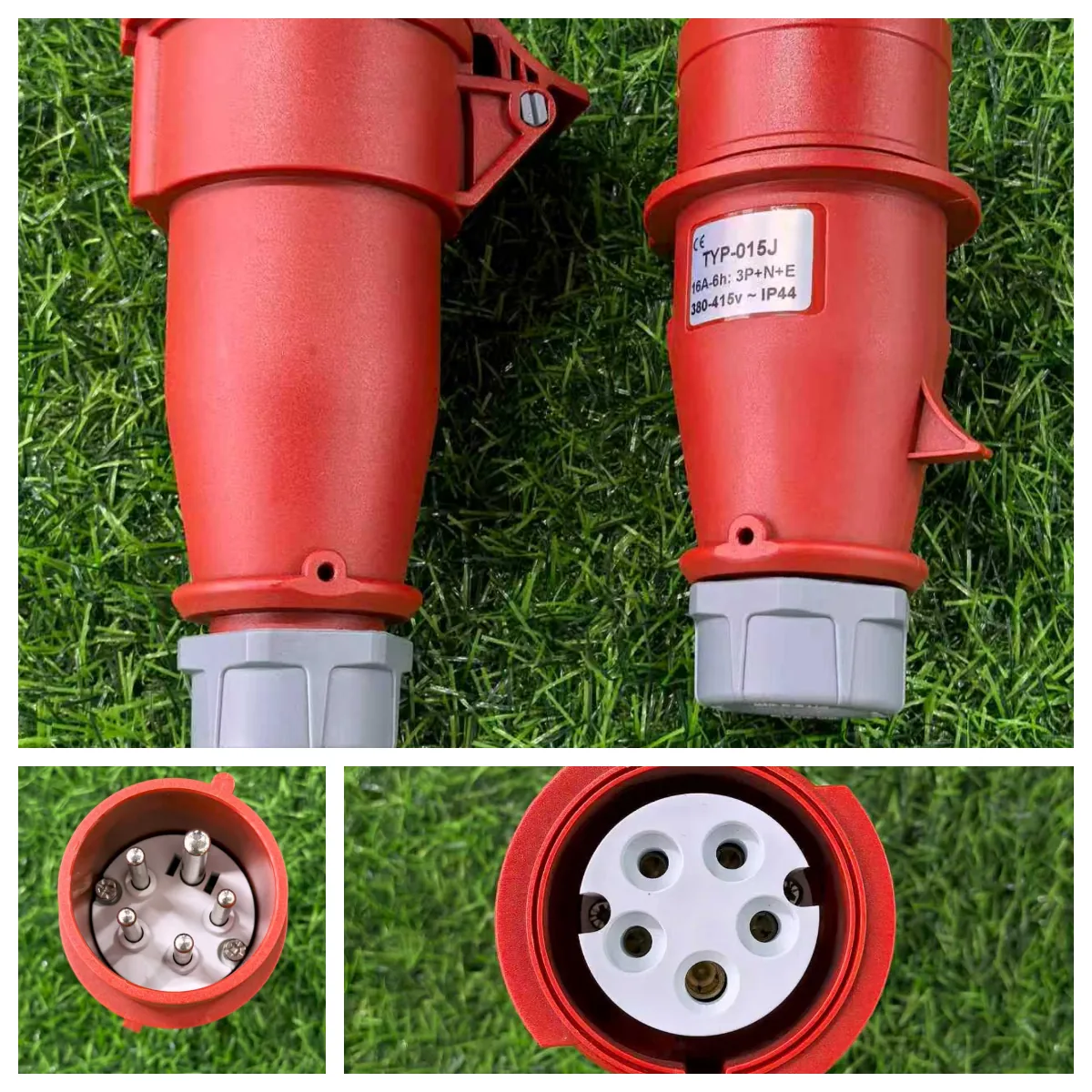

| Appearance structure | Power plug | 3.5 kW: 16 A European standard plug; 7 kW: 32 A Industrial plug; 11 kW / 11-22 kW: Three phase industrial plug |
|---|---|---|
| Model | 3.5 kW: Plug&Play/Book time/Current Regulation; 7 kW: Plug&Play/Book time; 11 kW: Plug&Play/Book time; 11-22 kW: Plug&Play/Book time/Current Regulation | |
| Enclosure | Gun head PC9330 / control box PC+ABS | |
| Size | Charging Gun 230 × 70 × 60 mm / Control Box 235 × 95 × 60 mm (H×W×D) | |
| Installation Method | Floor-mounted / Wall-Mounted | |
| Install Components | Screw, Fixed bracket | |
| Power Direction | Input (Up) & Output (Down) | |
| Net Weight | 3.5 kW: About 2.5 kg; 7 kW: About 3.9 kg; 11 kW: About 3.7 kg; 11-22 kW: About 4.8 kg | |
| Cable Size | 3.5 kW: 3×2.5 mm² + 0.75 mm²; 7 kW: 3×6 mm² + 0.75 mm²; 11 kW: 5×2.5 mm² + 0.75 mm²; 11-22 kW: 5×6 mm² + 0.75 mm² | |
| Cable Length | 5 m or Negotiation | |
| Electrical index | Input Voltage | 3.5 kW / 7 kW: 85 V - 265 V; 11 kW / 11-22 kW: 380 V ±10% |
| Input Frequency | 50 Hz / 60 Hz | |
| Max Power | 3.5 kW; 7 kW; 11 kW; 11 kW - 22 kW | |
| Output Voltage | 3.5 kW / 7 kW: 85 V - 265 V; 11 kW / 11-22 kW: 380 V ±10% | |
| Output Current | 3.5 kW: 6 A - 16 A; 7 kW: 6 A - 32 A; 11 kW: 16 A; 11-22 kW: 16 A - 32 A | |
| Standby Power | 3 W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5% to 95% (non-condensing) | |
| Work Temperature | -30 °C to +50 °C | |
| Work Altitude | < 2000 m | |
| Protection Class | IP54 | |
| Cooling Method | Natural Cooling | |
| Standard | IEC | |
| Flammability rating | UL94 V0 | |
| Certificate | Quality inspection report | |
| Functional design | Interface | 1.68 inch Display Screen |
| Communication | / | |
| Packaging specification | Box gauge/weight | 3.5 kW: 380 × 380 × 100 mm (L×W×H), about 3.3 kg; 7 kW: 380 × 380 × 100 mm (L×W×H), about 4.7 kg; 11 kW: 380 × 380 × 100 mm (L×W×H), about 4.5 kg; 11-22 kW: 380 × 380 × 100 mm (L×W×H), about 5.6 kg |
| Safety design | Safety design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
