Portable L4
7.6–11 kW · Type2 · portable
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- Not typically covered by utility rebates (portable unit)
- Ships with Type 2 (IEC 62196) for Europe
What this charger does

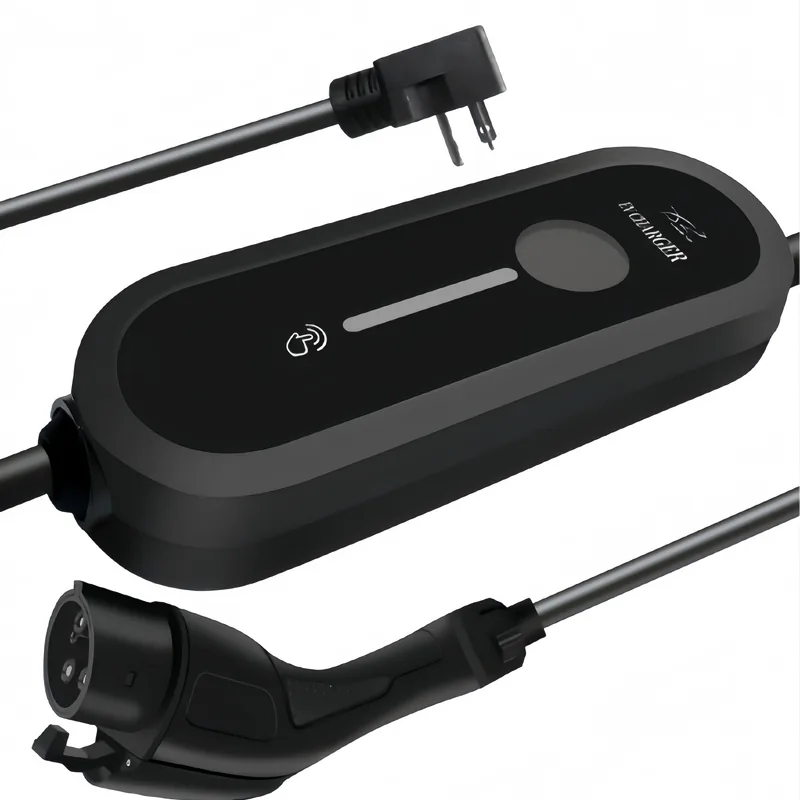

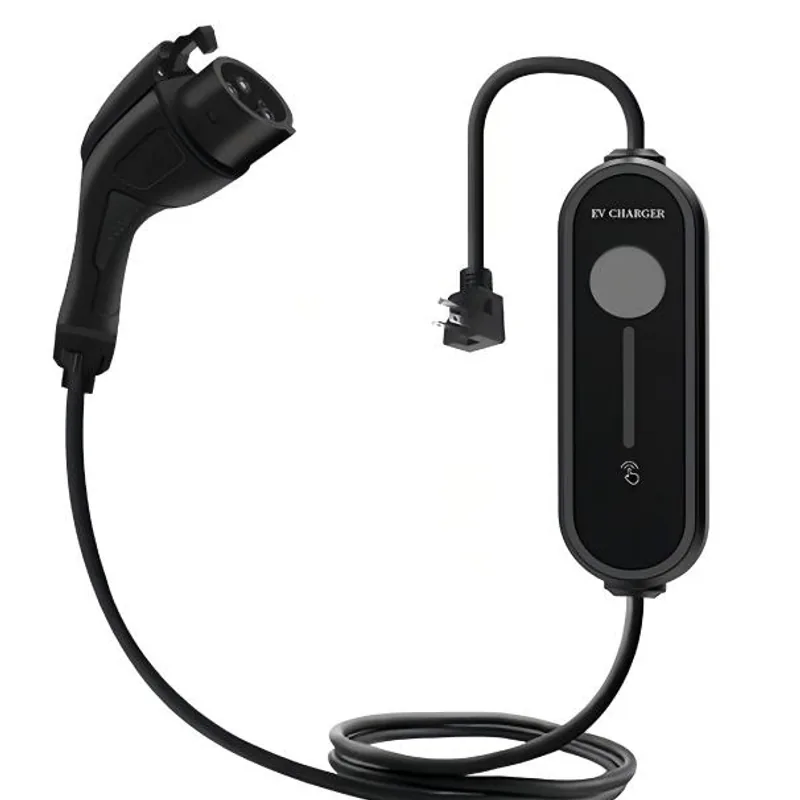

Portable Level 2 charger you keep in the trunk and plug in wherever you park. A 1.68-inch LCD shows live charging data, and you can dial the current down to match the outlet and schedule charging for off-peak hours.
What you get
- Portable AC can be charged with the vehicle, and after charging, it can be carried with the vehicle.
- A 1.68-inch LCD display screen provides a more comprehensive human-machine communication interface.
- Numerical screen display, displaying the relevant basic data of real-time charging of the charging gun.
- Current gear adjustment function and scheduled charging function.
Power options for Europe
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 11 kW | 380V ± 10% | 16A |
| 7 kW | 380V ± 10% | 6A ~ 32A |
At a glance
| SKU | TK-A04 |
|---|---|
| Supplier reference | 888004 |
| Power | 7.6–11 kW |
| Connector (Europe) | Type2 — Type 2 (IEC 62196) |
| Form factor | portable |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

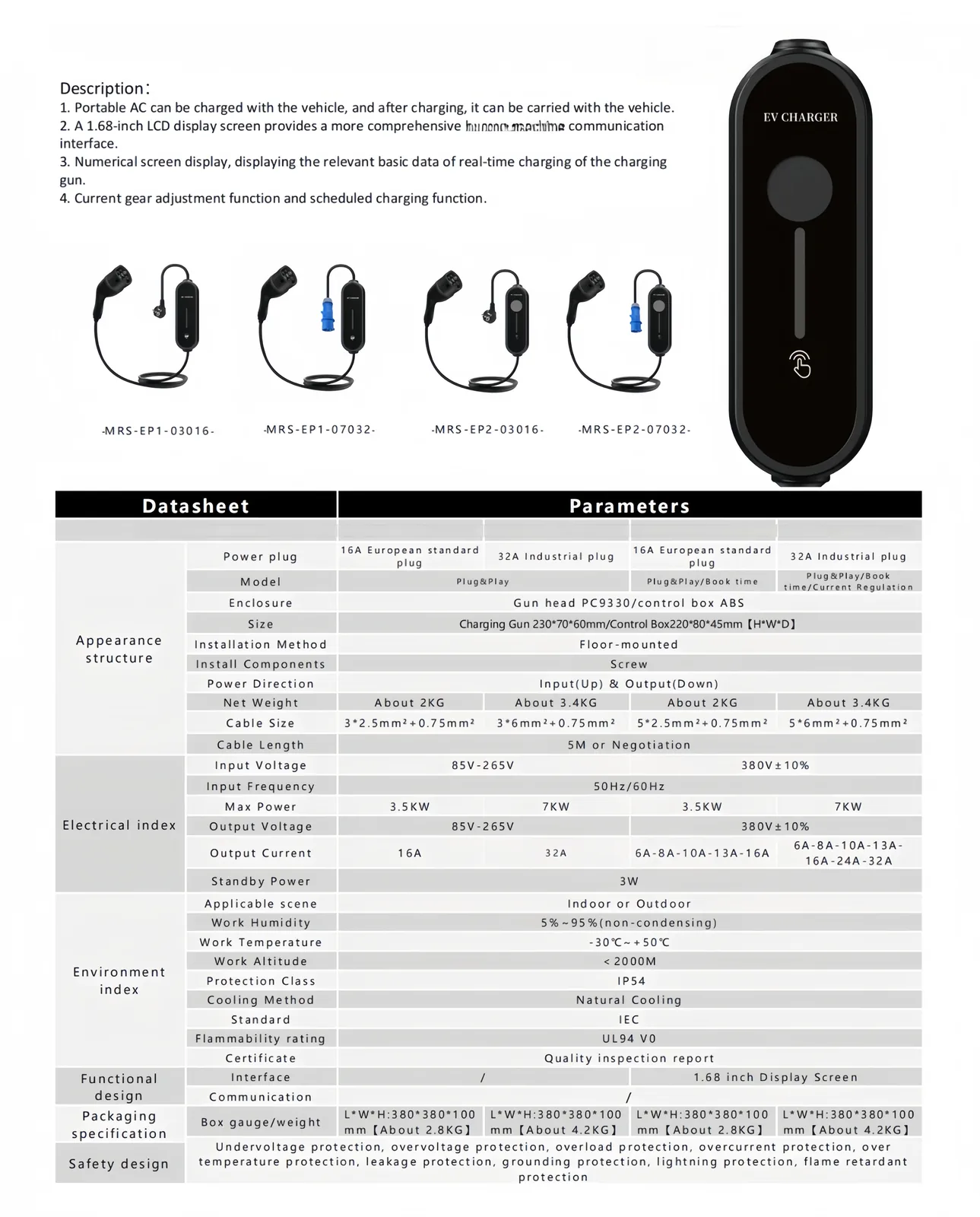

Full datasheet

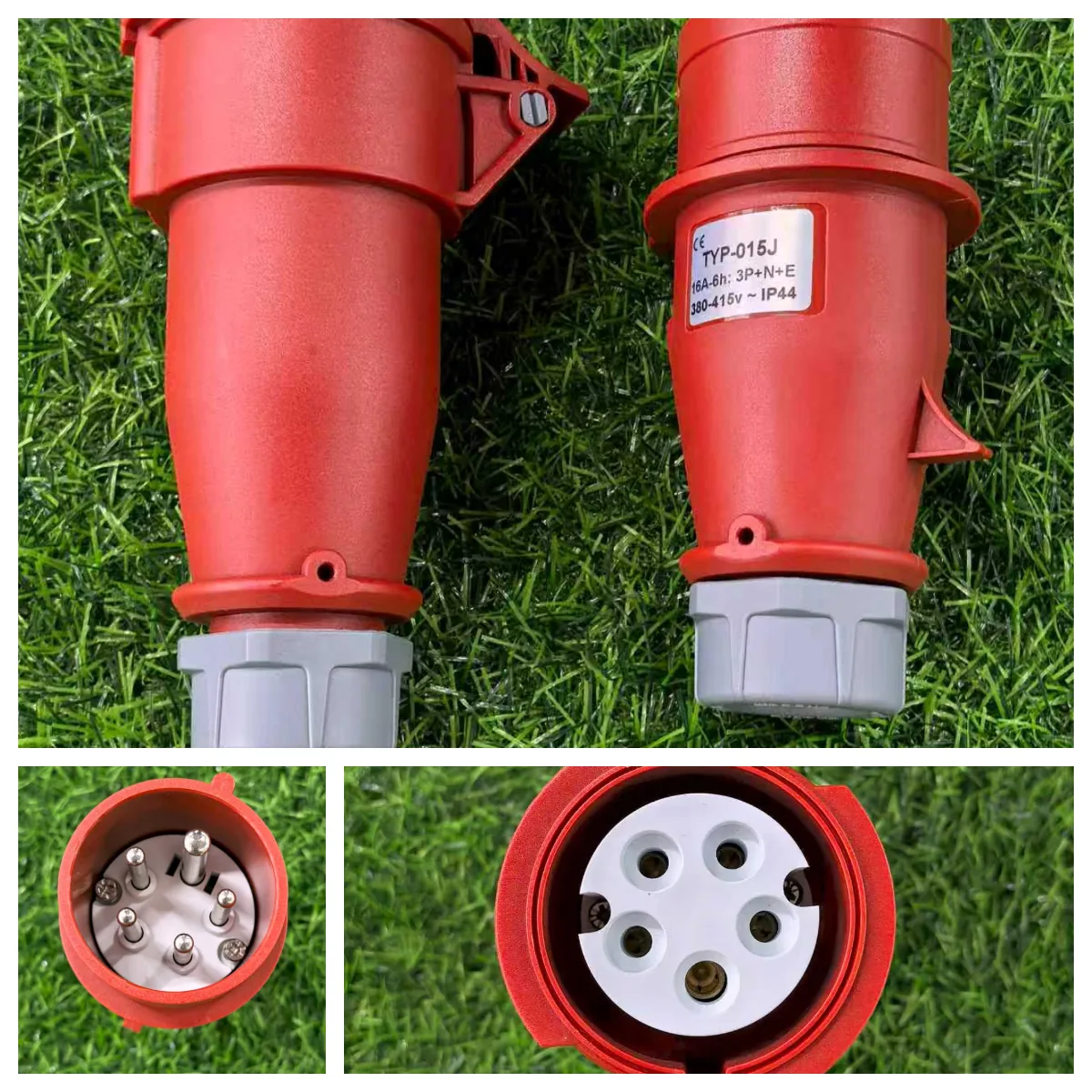

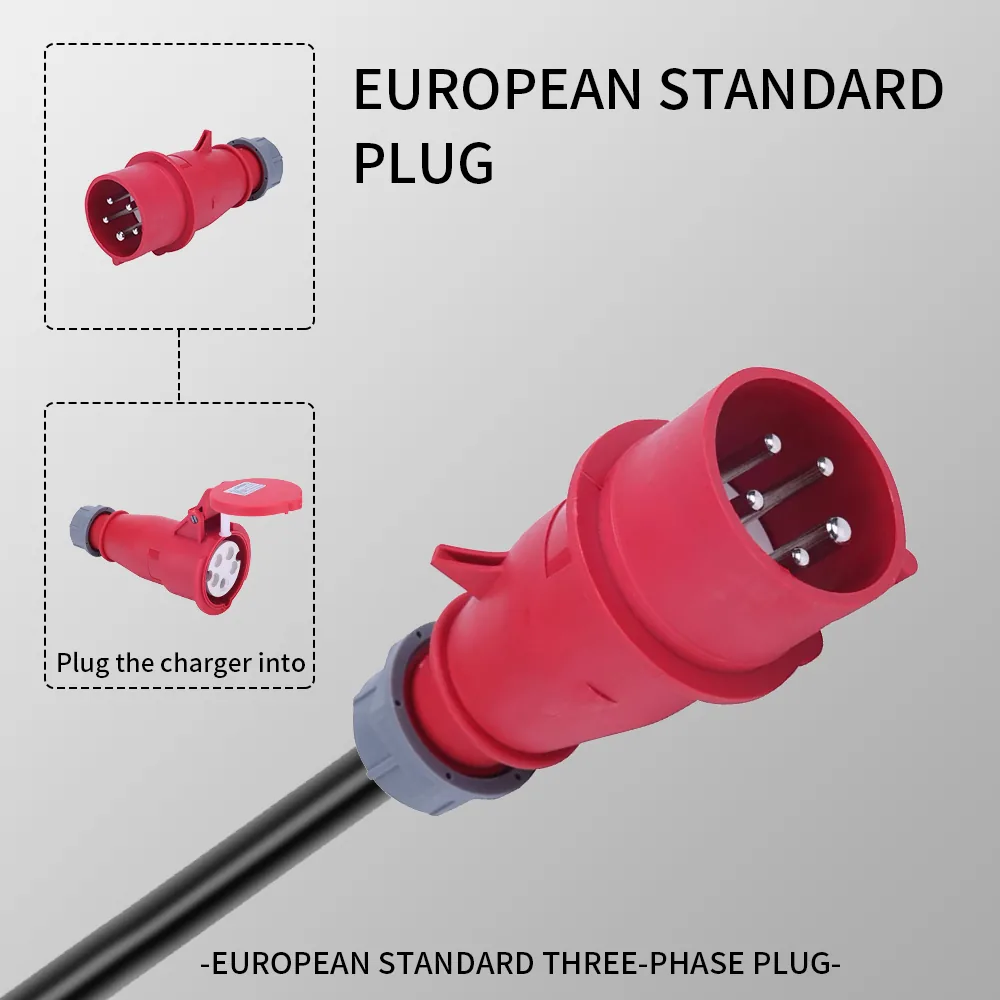

| Appearance structure | Power plug | MRS-EP1-03016: 16 A European standard plug; MRS-EP1-07032: 32 A Industrial plug; MRS-EP2-03016: 16 A European standard plug; MRS-EP2-07032: 32 A Industrial plug |
|---|---|---|
| Model | MRS-EP1-03016: Plug&Play; MRS-EP1-07032: Plug&Play; MRS-EP2-03016: Plug&Play/Book time; MRS-EP2-07032: Plug&Play/Book time/Current Regulation | |
| Enclosure | Gun head PC9330 / control box ABS | |
| Size | Charging Gun 230 × 70 × 60 mm / Control Box 220 × 80 × 45 mm (H×W×D) | |
| Installation Method | Floor-mounted | |
| Install Components | Screw | |
| Power Direction | Input (Up) & Output (Down) | |
| Net Weight | MRS-EP1-03016: About 2 kg; MRS-EP1-07032: About 3.4 kg; MRS-EP2-03016: About 2 kg; MRS-EP2-07032: About 3.4 kg | |
| Cable Size | MRS-EP1-03016: 3×2.5 mm² + 0.75 mm²; MRS-EP1-07032: 3×6 mm² + 0.75 mm²; MRS-EP2-03016: 5×2.5 mm² + 0.75 mm²; MRS-EP2-07032: 5×6 mm² + 0.75 mm² | |
| Cable Length | 5 m or Negotiation | |
| Electrical index | Input Voltage | MRS-EP1-03016/MRS-EP1-07032: 85–265 V; MRS-EP2-03016/MRS-EP2-07032: 380 V ±10% |
| Input Frequency | 50 Hz / 60 Hz | |
| Max Power | MRS-EP1-03016: 3.5 kW; MRS-EP1-07032: 7 kW; MRS-EP2-03016: 3.5 kW; MRS-EP2-07032: 7 kW | |
| Output Voltage | MRS-EP1-03016/MRS-EP1-07032: 85–265 V; MRS-EP2-03016/MRS-EP2-07032: 380 V ±10% | |
| Output Current | MRS-EP1-03016: 16 A; MRS-EP1-07032: 32 A; MRS-EP2-03016: 6 A-8 A-10 A-13 A-16 A; MRS-EP2-07032: 6 A-8 A-10 A-13 A-16 A-24 A-32 A | |
| Standby Power | 3 W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5% to 95% (non-condensing) | |
| Work Temperature | -30 °C to +50 °C | |
| Work Altitude | < 2000 m | |
| Protection Class | IP54 | |
| Cooling Method | Natural Cooling | |
| Standard | IEC | |
| Flammability rating | UL94 V0 | |
| Certificate | Quality inspection report | |
| Functional design | Interface | MRS-EP1-03016/MRS-EP1-07032: /; MRS-EP2-03016/MRS-EP2-07032: 1.68 inch Display Screen |
| Communication | / | |
| Packaging specification | Box gauge/weight | MRS-EP1-03016: 380 × 380 × 100 mm (L×W×H), About 2.8 kg; MRS-EP1-07032: 380 × 380 × 100 mm (L×W×H), About 4.2 kg; MRS-EP2-03016: 380 × 380 × 100 mm (L×W×H), About 2.8 kg; MRS-EP2-07032: 380 × 380 × 100 mm (L×W×H), About 4.2 kg |
| Safety design | Safety design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
