Portable L1
1.9–7 kW · Type2 · portable
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- Not typically covered by utility rebates (portable unit)
- Ships with Type 2 (IEC 62196) for Europe
What this charger does

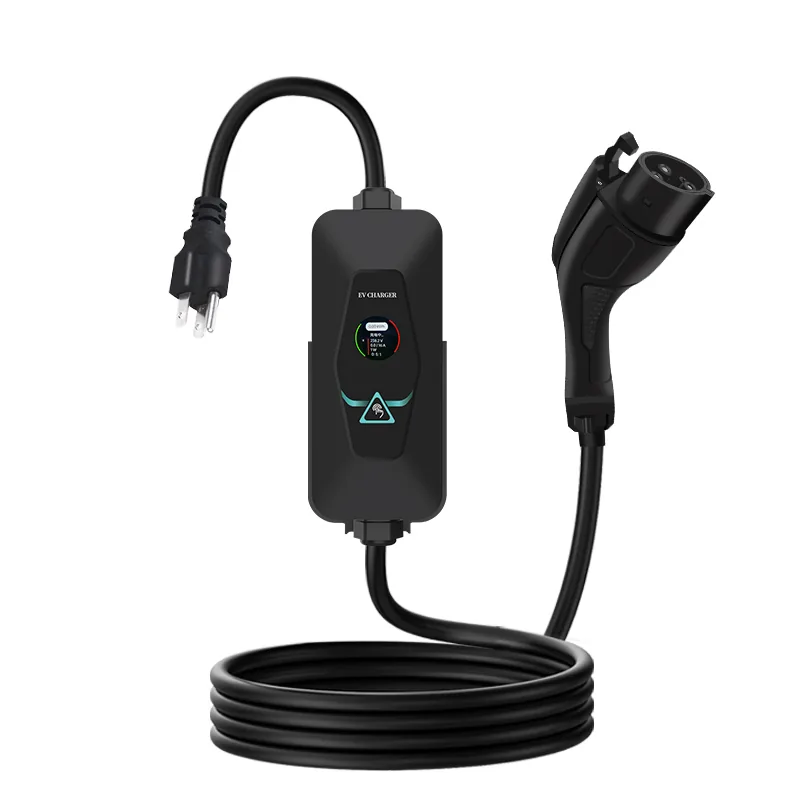

Portable Level 2 charger you keep in the trunk and plug in wherever you park. A 1.68-inch LCD shows live charging data, and you can dial the current down to match the outlet and schedule charging for off-peak hours. Comes with a wall hook so it doubles as a fixed charger at home.
What you get
- Portable AC can be charged with the vehicle, and after charging, it can be carried with the vehicle.
- A 1.68-inch LCD display screen provides a more comprehensive human-machine communication interface.
- Numerical screen display, displaying the relevant basic data of real-time charging of the charging gun.
- Current gear adjustment function and scheduled charging function.
- Free wall mounted back buckle, which can be used to fix the charging gun on the wall.
Power options for Europe
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 3.5 kW | 85V ~ 265V | 6A ~ 16A |
| 7 kW | 85V ~ 265V | 6A ~ 32A |
At a glance
| SKU | TK-A01 |
|---|---|
| Supplier reference | 888001 |
| Power | 1.9–7 kW |
| Connector (Europe) | Type2 — Type 2 (IEC 62196) |
| Form factor | portable |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

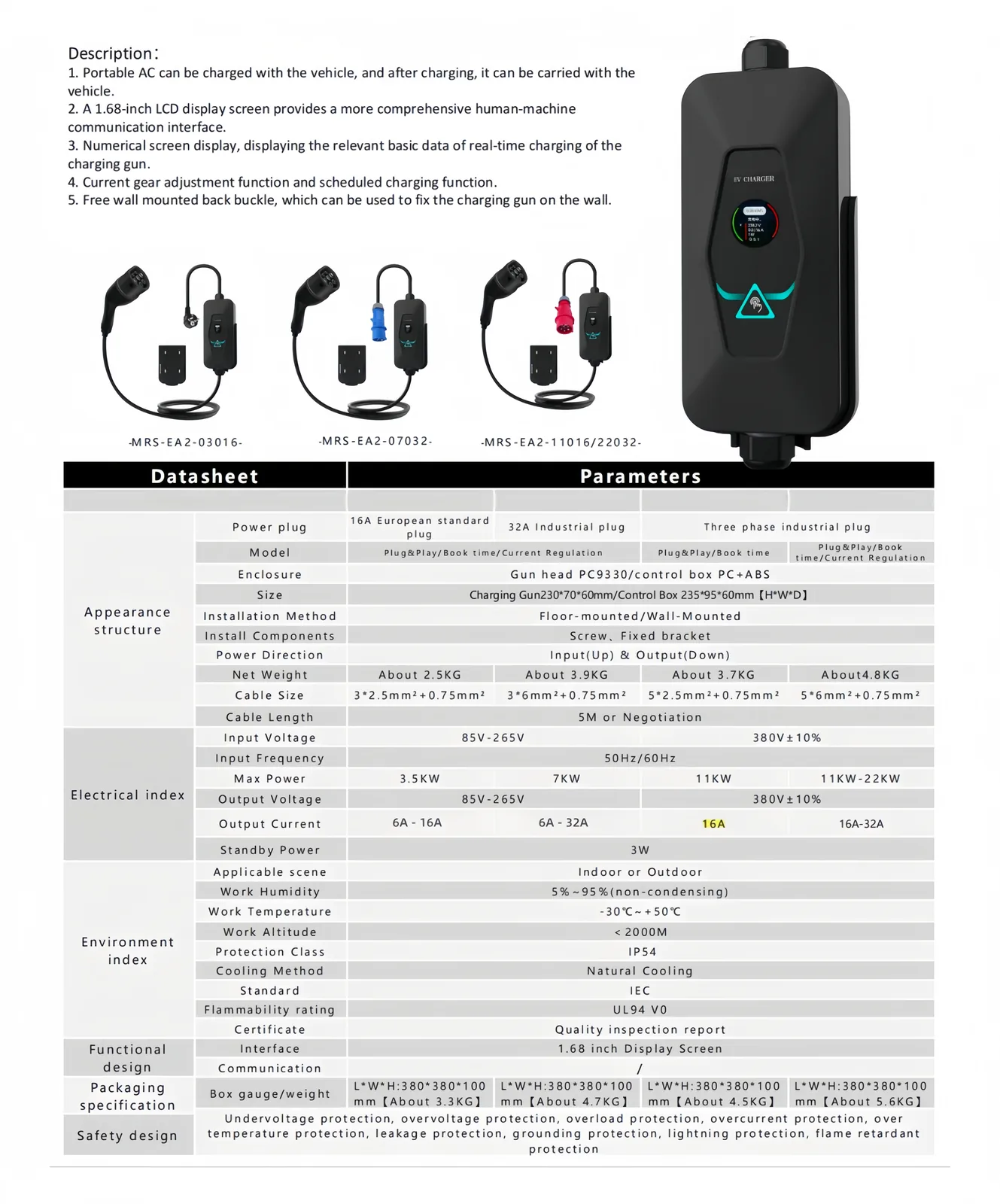

Full datasheet

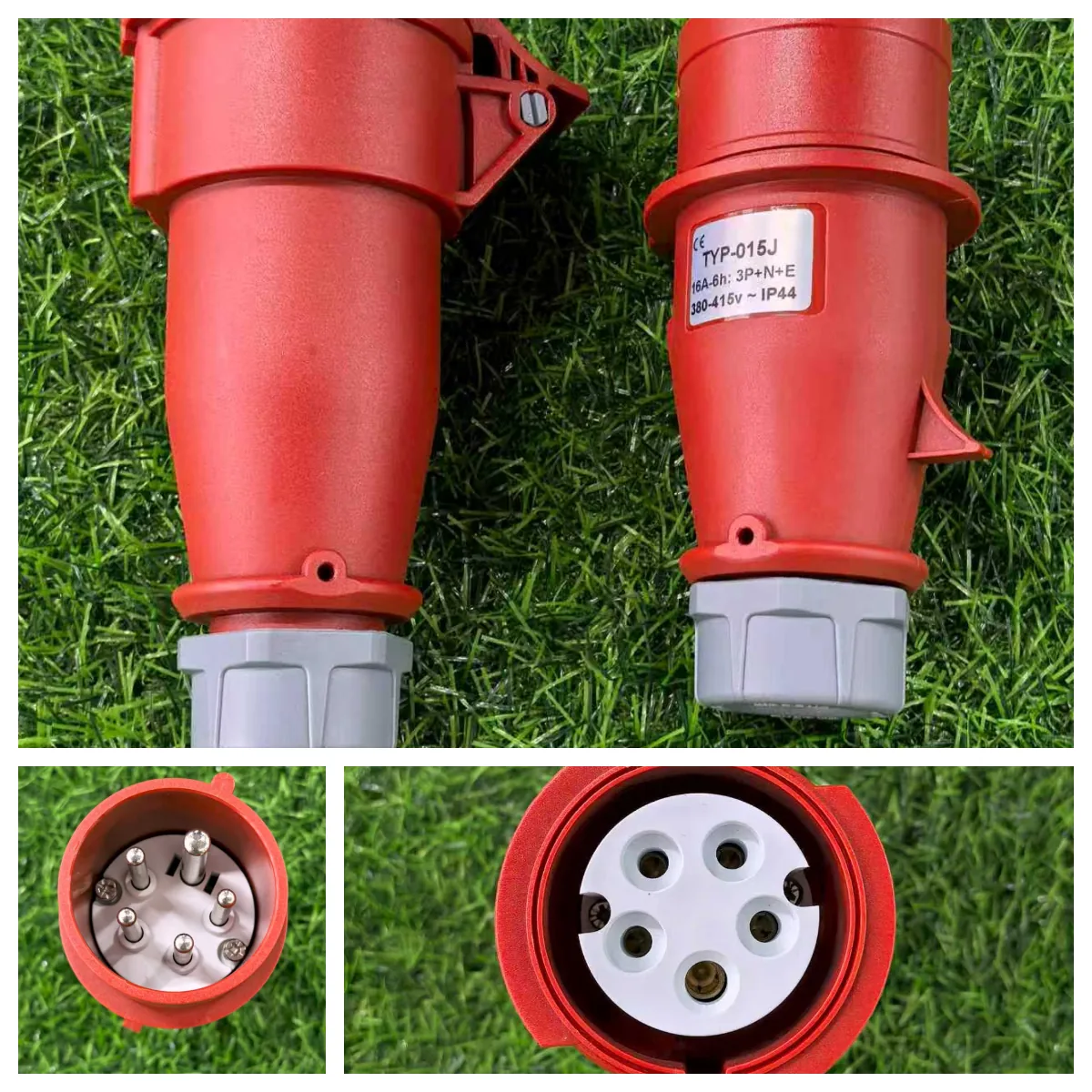

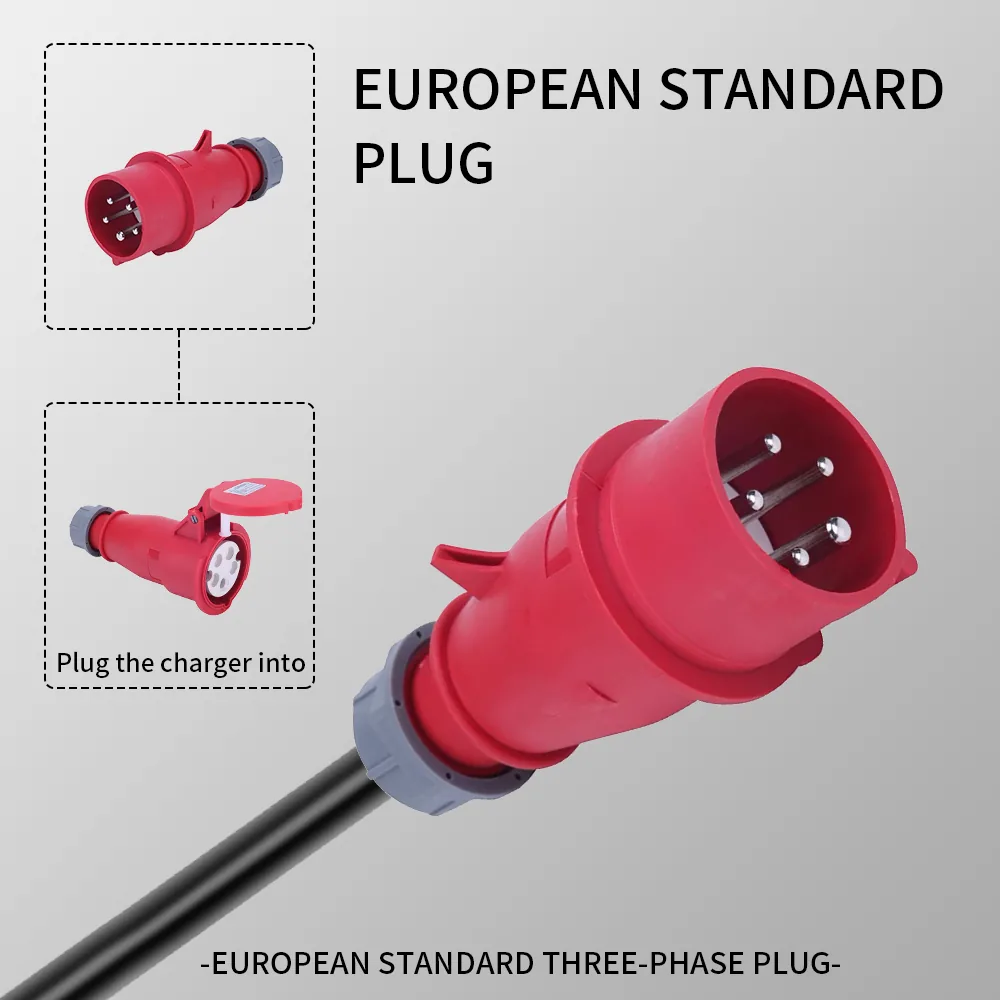

| Appearance structure | Power plug | 3.5 kW: 16 A European standard plug; 7 kW: 32 A Industrial plug; 11 kW / 11-22 kW: Three phase industrial plug |
|---|---|---|
| Model | 3.5 kW: Plug&Play/Book time/Current Regulation; 7 kW: Plug&Play/Book time; 11 kW: Plug&Play/Book time; 11-22 kW: Plug&Play/Book time/Current Regulation | |
| Enclosure | Gun head PC9330 / control box PC+ABS | |
| Size | Charging Gun 230 × 70 × 60 mm / Control Box 235 × 95 × 60 mm (H×W×D) | |
| Installation Method | Floor-mounted / Wall-Mounted | |
| Install Components | Screw, Fixed bracket | |
| Power Direction | Input (Up) & Output (Down) | |
| Net Weight | 3.5 kW: About 2.5 kg; 7 kW: About 3.9 kg; 11 kW: About 3.7 kg; 11-22 kW: About 4.8 kg | |
| Cable Size | 3.5 kW: 3×2.5 mm² + 0.75 mm²; 7 kW: 3×6 mm² + 0.75 mm²; 11 kW: 5×2.5 mm² + 0.75 mm²; 11-22 kW: 5×6 mm² + 0.75 mm² | |
| Cable Length | 5 m or Negotiation | |
| Electrical index | Input Voltage | 3.5 kW / 7 kW: 85 V - 265 V; 11 kW / 11-22 kW: 380 V ±10% |
| Input Frequency | 50 Hz / 60 Hz | |
| Max Power | 3.5 kW; 7 kW; 11 kW; 11 kW - 22 kW | |
| Output Voltage | 3.5 kW / 7 kW: 85 V - 265 V; 11 kW / 11-22 kW: 380 V ±10% | |
| Output Current | 3.5 kW: 6 A - 16 A; 7 kW: 6 A - 32 A; 11 kW: 16 A; 11-22 kW: 16 A - 32 A | |
| Standby Power | 3 W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5% to 95% (non-condensing) | |
| Work Temperature | -30 °C to +50 °C | |
| Work Altitude | < 2000 m | |
| Protection Class | IP54 | |
| Cooling Method | Natural Cooling | |
| Standard | IEC | |
| Flammability rating | UL94 V0 | |
| Certificate | Quality inspection report | |
| Functional design | Interface | 1.68 inch Display Screen |
| Communication | / | |
| Packaging specification | Box gauge/weight | 3.5 kW: 380 × 380 × 100 mm (L×W×H), about 3.3 kg; 7 kW: 380 × 380 × 100 mm (L×W×H), about 4.7 kg; 11 kW: 380 × 380 × 100 mm (L×W×H), about 4.5 kg; 11-22 kW: 380 × 380 × 100 mm (L×W×H), about 5.6 kg |
| Safety design | Safety design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
