Wallbox Access 3
7–22 kW · Type1 · wall
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- Rebate-eligible where your utility runs a program — check yours
- Ships with Type 1 (SAE J1772) for United States
What this charger does

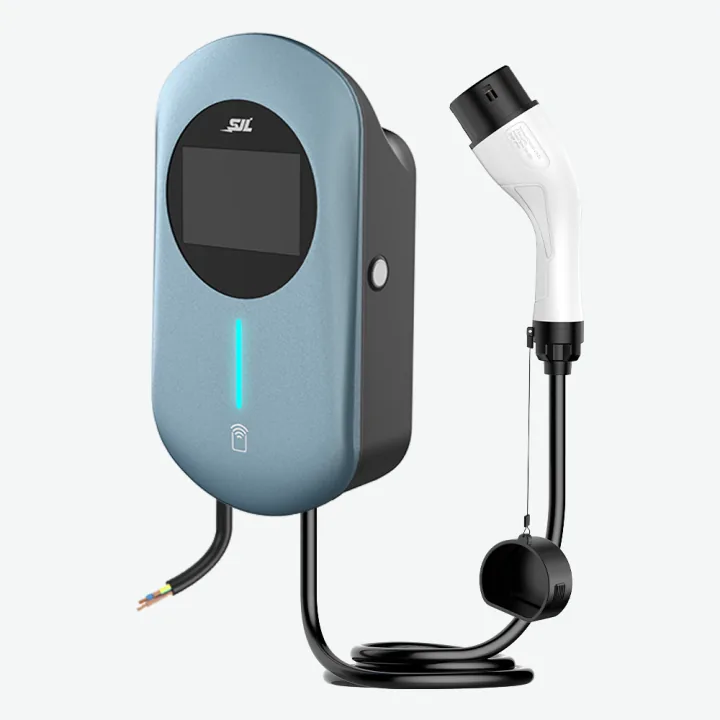

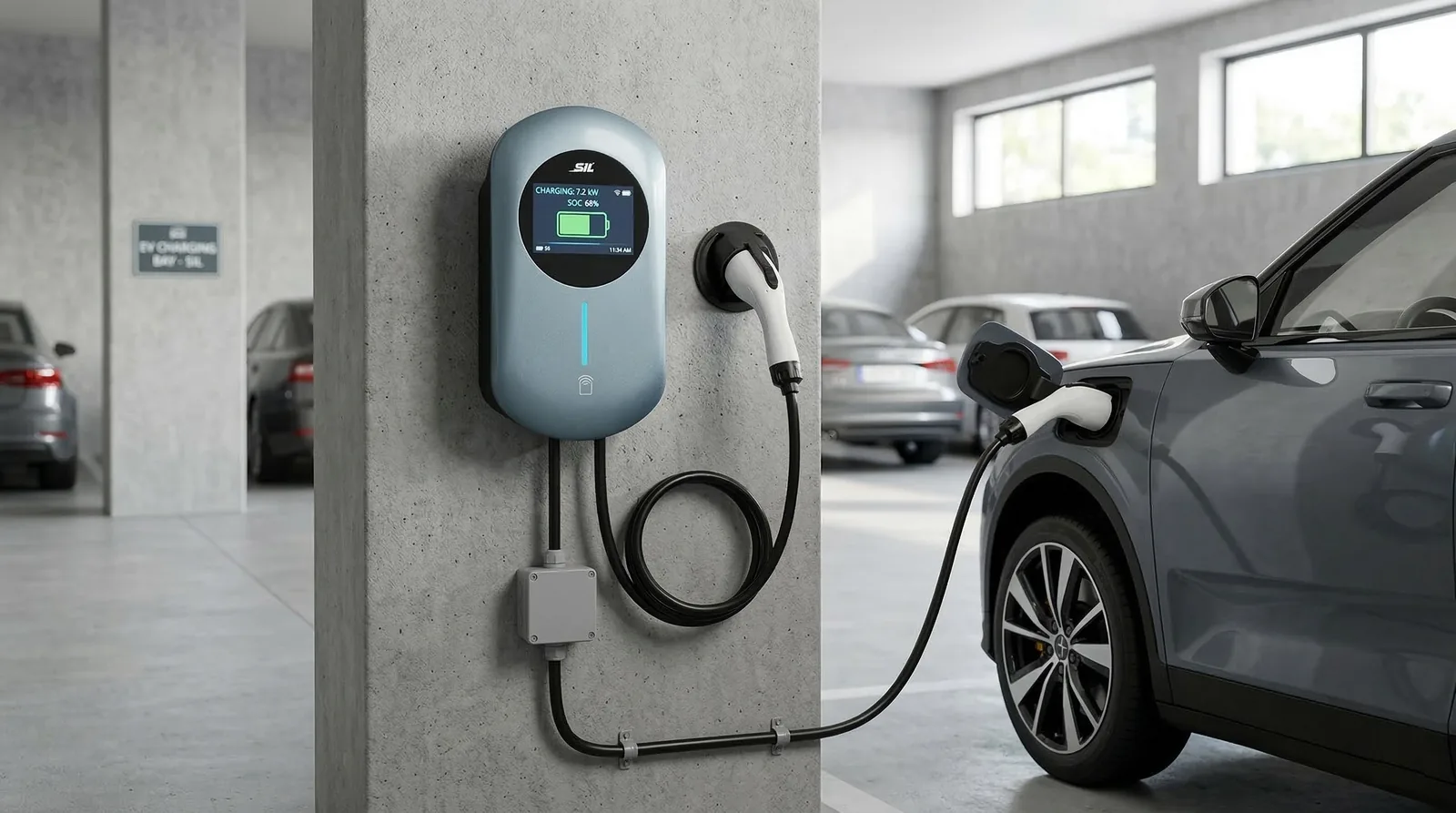

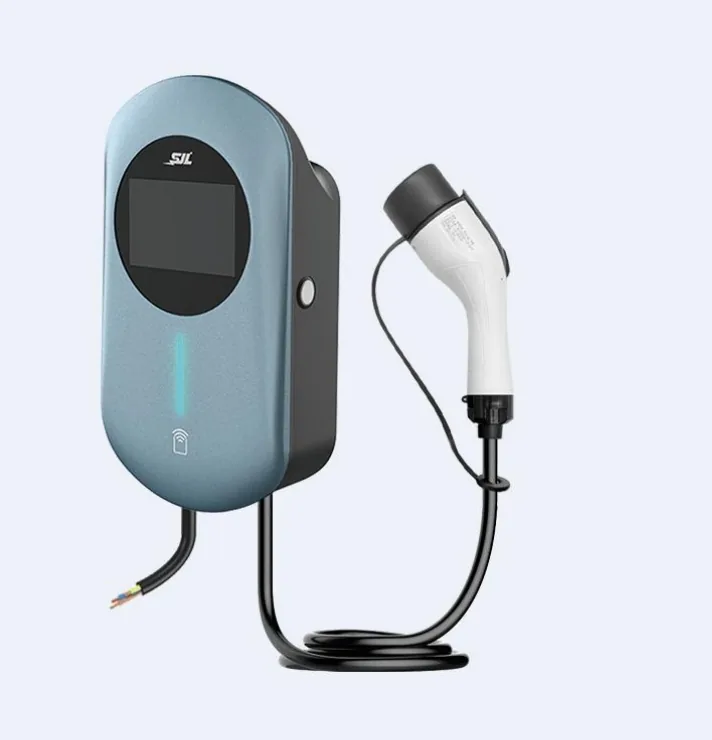

Wallbox with RFID card access, so only authorized users can start a session — built for workplaces, multi-family parking and shared driveways. Mounts on the wall or on a pedestal; standby draw is 3 W; a three-color light shows charging status.
What you get
- Wall mounted and column mounted AC charging stations.
- The power of the device in standby mode is as low as 3W, saving energy and low consumption.
- Three color charging indicator light, indicating charging related values.
- Numerical screen display, displaying real-time charging data related to the charging station.
- Silver and black glass panels are available for customization.
Power options for United States
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 7.6 kW | 240V | 32A |
| 9.6 kW | 240V | 40A |
| 11.5 kW | 240V | 48A |
At a glance
| SKU | TK-A22 |
|---|---|
| Supplier reference | 888022 |
| Power | 7–22 kW |
| Connector (United States) | Type1 — Type 1 (SAE J1772) |
| Form factor | wall |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

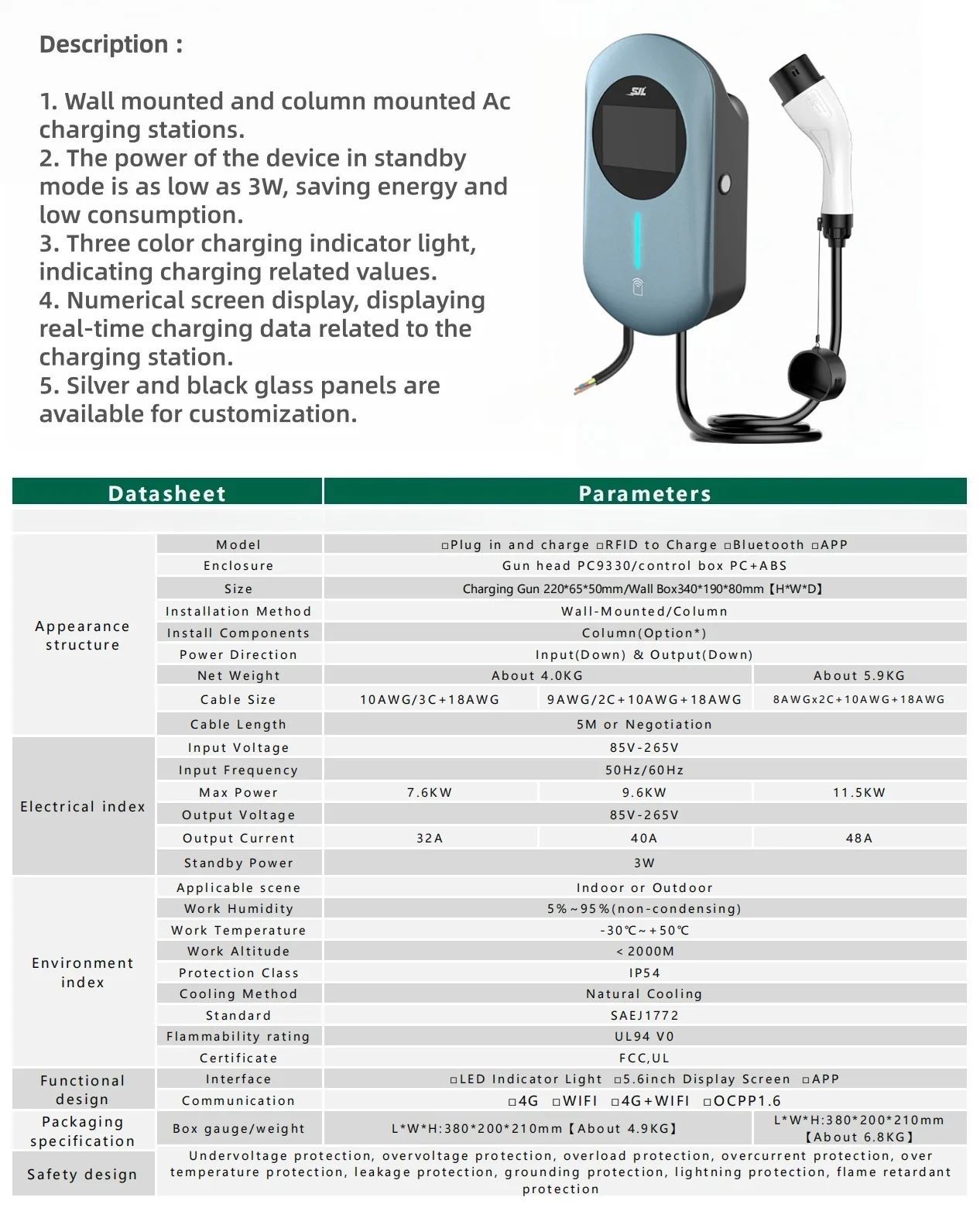

Full datasheet
| Appearance structure | Model | Plug in and charge / RFID to Charge / Bluetooth / APP (options) |
|---|---|---|
| Enclosure | Gun head PC9330/control box PC+ABS | |
| Size | Charging Gun 220 × 65 × 50 mm / Wall Box 340 × 190 × 80 mm (H×W×D) | |
| Installation Method | Wall-Mounted/Column | |
| Install Components | Column (Option*) | |
| Power Direction | Input(Down) & Output(Down) | |
| Net Weight | 7.6 kW / 9.6 kW: About 4.0 kg; 11.5 kW: About 5.9 kg | |
| Cable Size | 7.6 kW: 10AWG/3C+18AWG; 9.6 kW: 9AWG/2C+10AWG+18AWG; 11.5 kW: 8AWG×2C+10AWG+18AWG | |
| Cable Length | 5 m or Negotiation | |
| Electrical index | Input Voltage | 85 V–265 V |
| Input Frequency | 50 Hz/60 Hz | |
| Max Power | 7.6 kW; 9.6 kW; 11.5 kW | |
| Output Voltage | 85 V–265 V | |
| Output Current | 7.6 kW: 32 A; 9.6 kW: 40 A; 11.5 kW: 48 A | |
| Standby Power | 3 W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5%~95% (non-condensing) | |
| Work Temperature | -30 °C to +50 °C | |
| Work Altitude | < 2000 m | |
| Protection Class | IP54 | |
| Cooling Method | Natural Cooling | |
| Standard | SAE J1772 | |
| Flammability rating | UL94 V0 | |
| Certificate | FCC, UL | |
| Functional design | Interface | LED Indicator Light / 5.6 inch Display Screen / APP (options) |
| Communication | 4G / WIFI / 4G+WIFI / OCPP1.6 (options) | |
| Packaging specification | Box gauge/weight | 7.6 kW / 9.6 kW: 380 × 200 × 210 mm (L×W×H) [About 4.9 kg]; 11.5 kW: 380 × 200 × 210 mm (L×W×H) [About 6.8 kg] |
| Safety design | Safety design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
