Portable S5
1.9–7 kW · Type1 · portable
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- Not typically covered by utility rebates (portable unit)
- Ships with Type 1 (SAE J1772) for United States
What this charger does

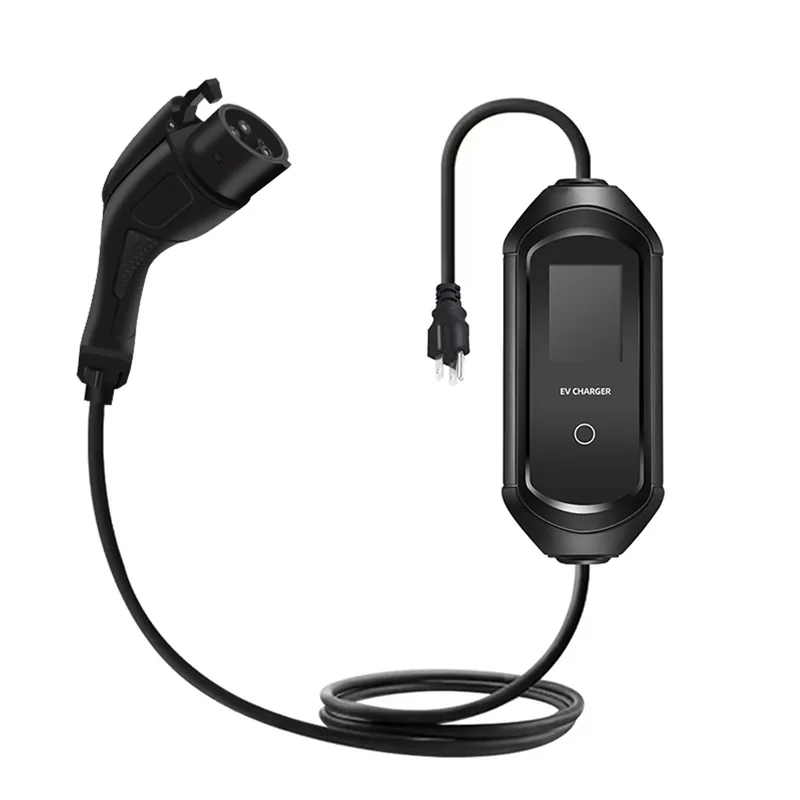

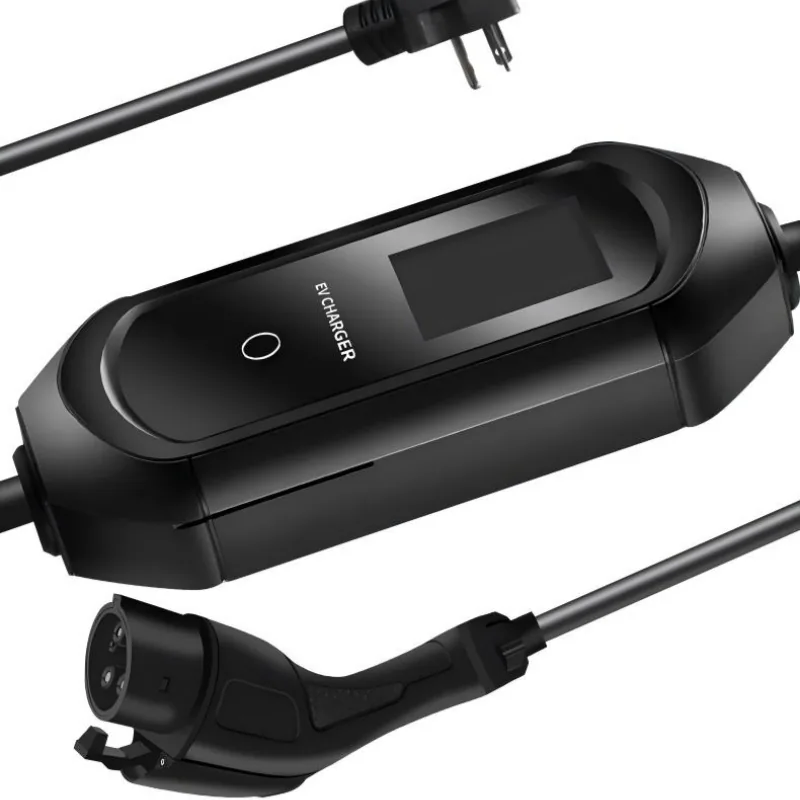

Portable Level 2 charger you keep in the trunk and plug in wherever you park. Standby draw is just 3 W, a three-color light shows charging status at a glance, and a numeric display reports live charging data.
What you get
- Portable home charging, can be carried with the vehicle after charging and use.
- The power of the device in standby mode is as low as 3W, which is energy-saving and low consumption.
- Three color charging indicator light, indicating charging related values.
- Numerical screen display, displaying real-time charging data of the charging gun.
Power options for United States
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 1.92 kW | 120V | 16A |
| 3.84 kW | 240V | 16A |
| 7.6 kW | 240V | 32A |
| 9.6 kW | 240V | 40A |
At a glance
| SKU | TK-A09 |
|---|---|
| Supplier reference | 888009 |
| Power | 1.9–7 kW |
| Connector (United States) | Type1 — Type 1 (SAE J1772) |
| Form factor | portable |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

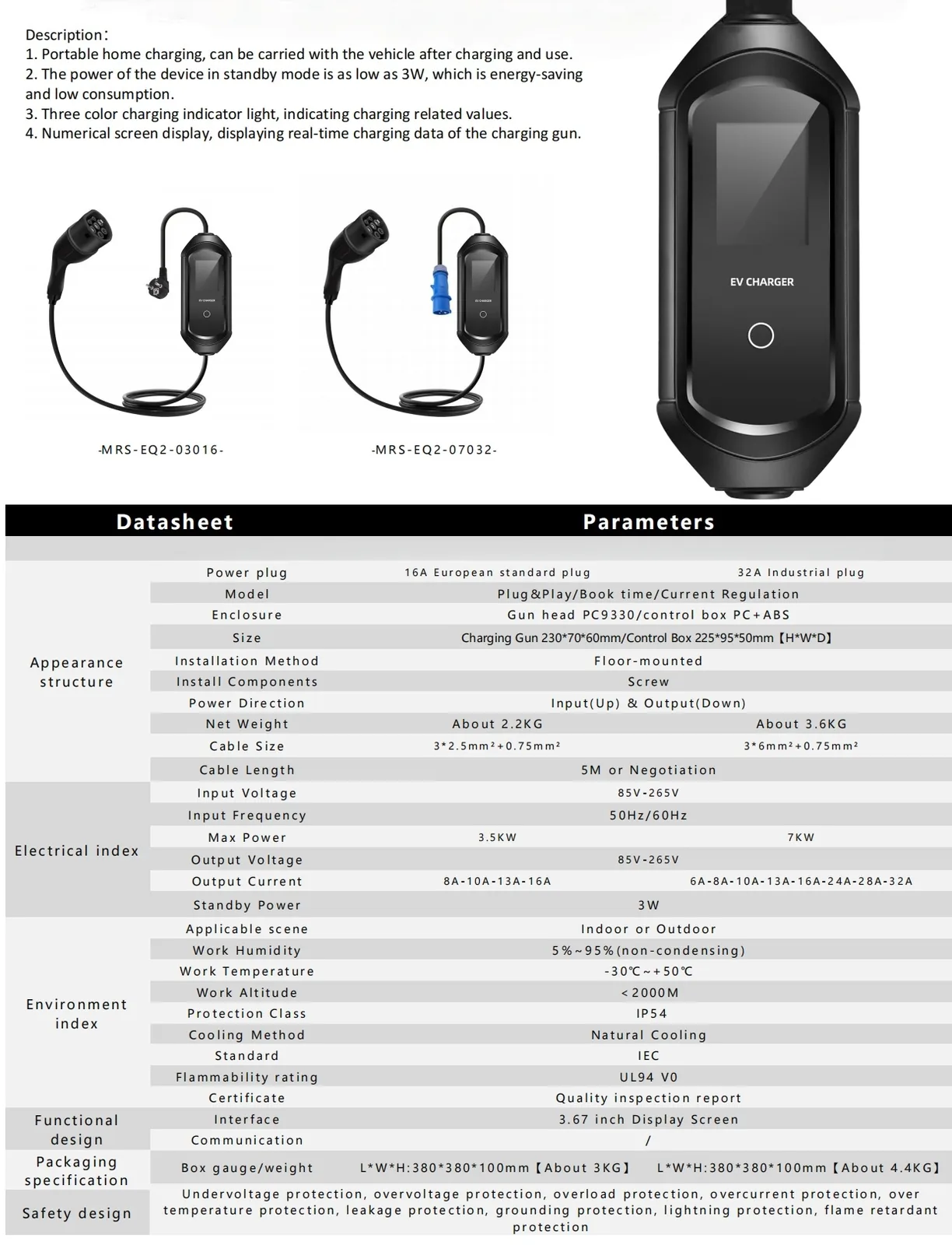

Full datasheet

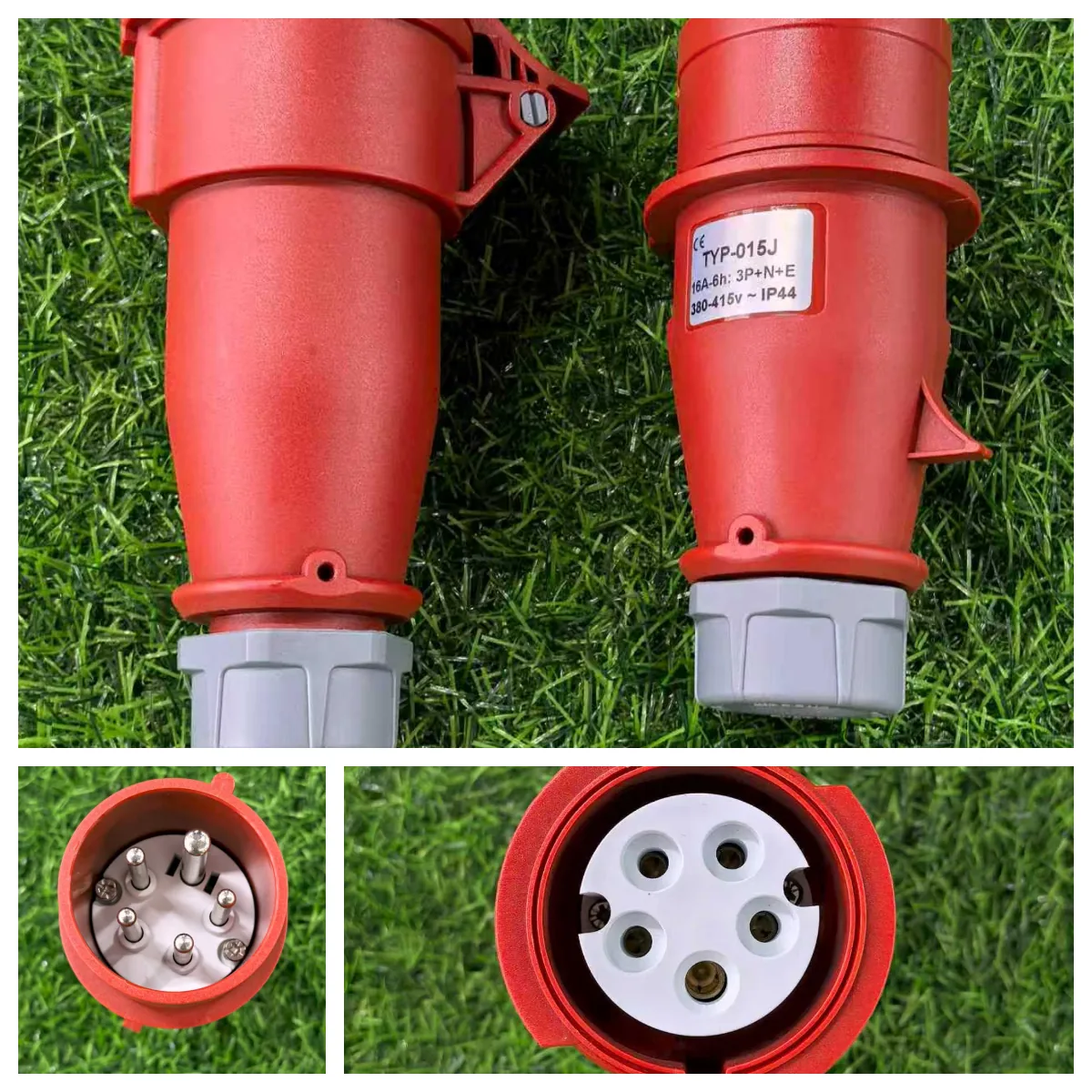

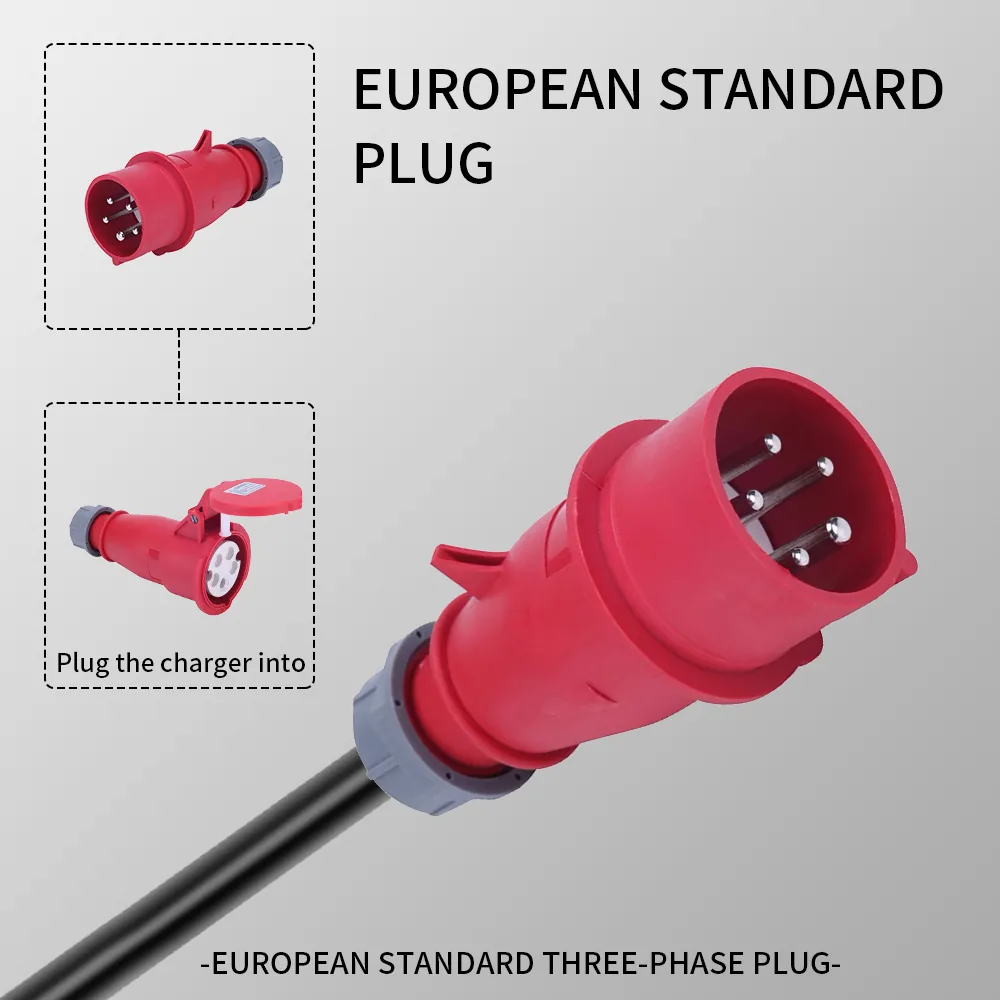

| Appearance structure | Power plug | 3.5 kW: 16 A European standard plug; 7 kW: 32 A Industrial plug |
|---|---|---|
| Model | Plug&Play/Book time/Current Regulation | |
| Enclosure | Gun head PC9330 / control box PC+ABS | |
| Size | Charging Gun 230 × 70 × 60 mm / Control Box 225 × 95 × 50 mm (H×W×D) | |
| Installation Method | Floor-mounted | |
| Install Components | Screw | |
| Power Direction | Input (Up) & Output (Down) | |
| Net Weight | 3.5 kW: About 2.2 kg; 7 kW: About 3.6 kg | |
| Cable Size | 3.5 kW: 3×2.5 mm² + 0.75 mm²; 7 kW: 3×6 mm² + 0.75 mm² | |
| Cable Length | 5 m or Negotiation | |
| Electrical index | Input Voltage | 85 V - 265 V |
| Input Frequency | 50 Hz / 60 Hz | |
| Max Power | 3.5 kW; 7 kW | |
| Output Voltage | 85 V - 265 V | |
| Output Current | 3.5 kW: 8 A - 10 A - 13 A - 16 A; 7 kW: 6 A - 8 A - 10 A - 13 A - 16 A - 24 A - 28 A - 32 A | |
| Standby Power | 3 W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5% to 95% (non-condensing) | |
| Work Temperature | -30 °C to +50 °C | |
| Work Altitude | < 2000 m | |
| Protection Class | IP54 | |
| Cooling Method | Natural Cooling | |
| Standard | IEC | |
| Flammability rating | UL94 V0 | |
| Certificate | Quality inspection report | |
| Functional design | Interface | 3.67 inch Display Screen |
| Communication | / | |
| Packaging specification | Box gauge/weight | 3.5 kW: 380 × 380 × 100 mm (L×W×H), about 3 kg; 7 kW: 380 × 380 × 100 mm (L×W×H), about 4.4 kg |
| Safety design | Safety design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
