Accessories · TK-X03

Adapter set, CCS2 vehicle

— · CCS2 · adapter

Power—ConnectorCCS2FormadapterListingCE · UL/ETL pending

MSRP €142 · placeholder

TUKO Direct −10%€128

TUKO Direct price applied automatically; 15% off 2–4 units
5+ units: fleet quote with site design
Not typically covered by utility rebates (adapter unit)
Ships with Type 2 (IEC 62196) for Europe

About

What this accessory does

DC and AC adapters that let a CCS2 vehicle charge from CCS1, GBT, Type 2, Tesla or CHAdeMO equipment. Rated to 1000 V DC and 250 A. Pick the conversion you need from the list below.

Configurations

Power options for Europe

Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.

Standard

Power	Voltage	Current
CCS2 to CCS1 dc	100 ~ 1000V DC Max	250A Max
CCS2 to CCS1 dc+ac	100 ~ 1000V DC Max	250A Max
CCS2 to GBT dc	100 ~ 1000V DC Max	250A Max
CCS2 to Type2 ac	100 ~ 1000V DC Max	250A Max
CCS2 to Tesla dc+ac	100 ~ 1000V DC Max	250A Max
CCS2-CHAdeMo dc	100 ~ 1000V DC Max	250A Max

Specifications

At a glance

SKU	TK-X03
Supplier reference	888039
Power	—
Connector (Europe)	CCS2 — Type 2 (IEC 62196)
Form factor	adapter
Certifications	CE · UL/ETL listing pending (required for most US utility rebates)
Markets	Europe

Full datasheet

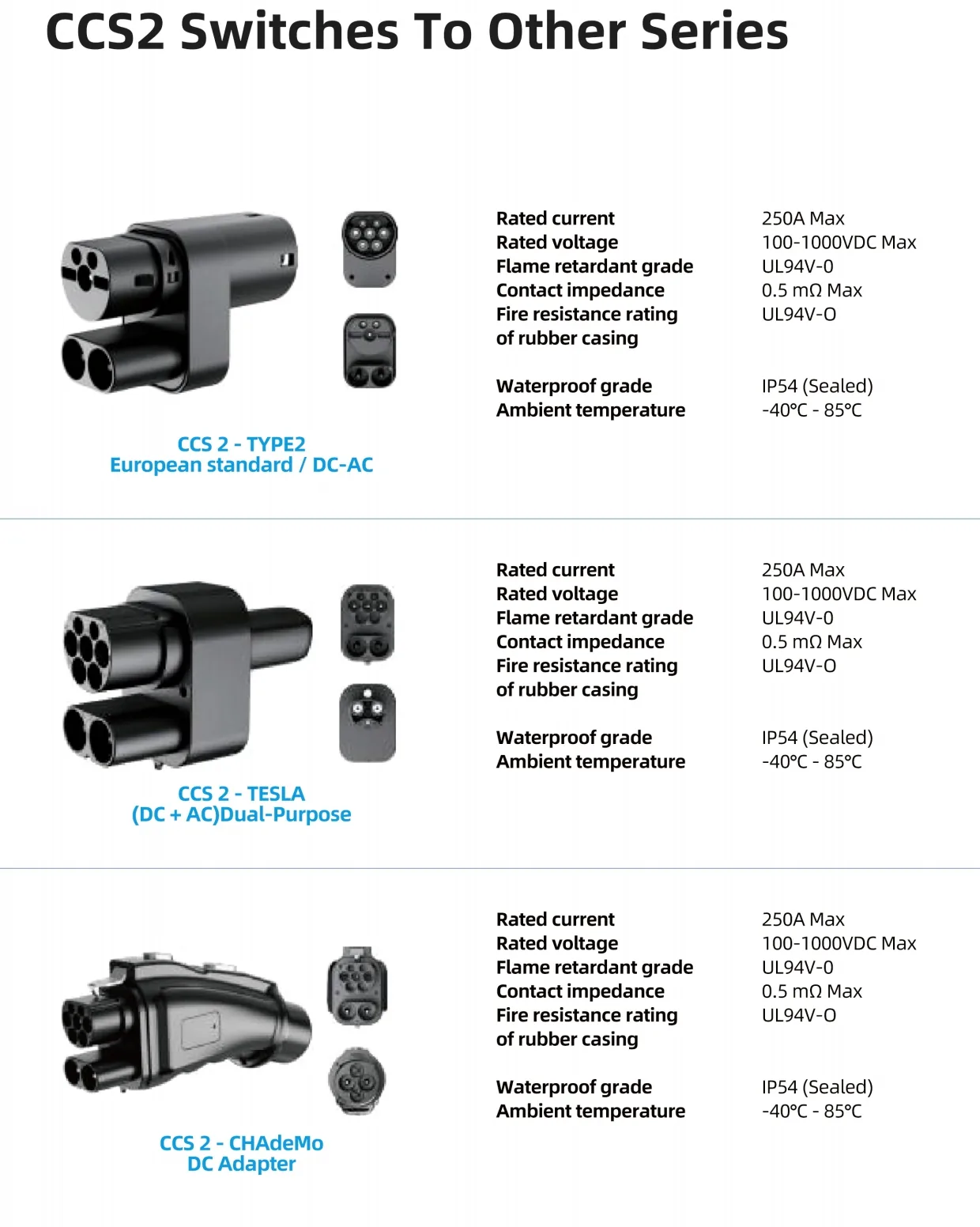

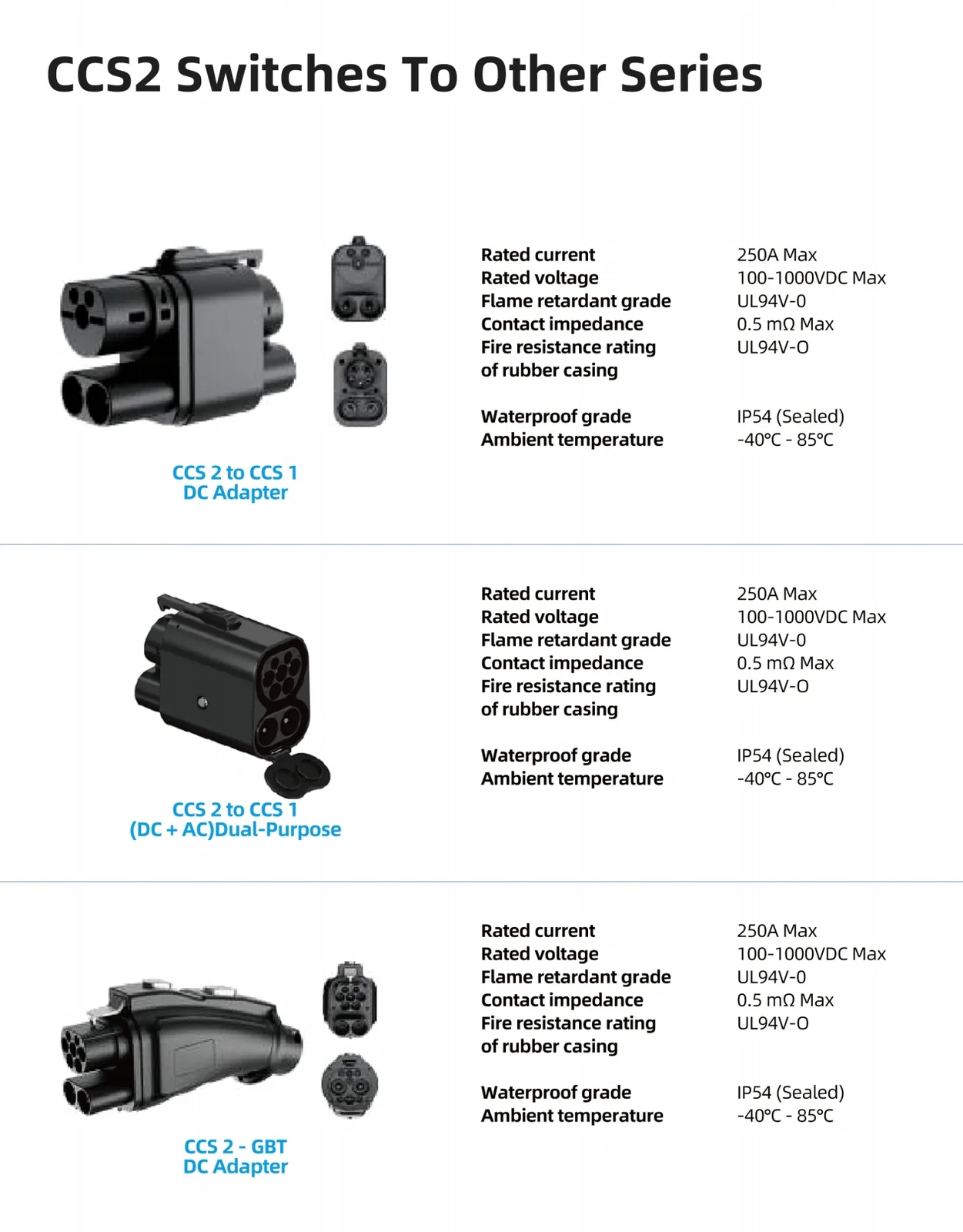

General	Variants	CCS 2 to CCS 1 DC Adapter; CCS 2 to CCS 1 (DC + AC) Dual-Purpose; CCS 2 - GBT DC Adapter; CCS 2 - TYPE2 European standard / DC-AC; CCS 2 - TESLA (DC + AC) Dual-Purpose; CCS 2 - CHAdeMO DC Adapter
Electrical	Rated current	250 A Max
	Rated voltage	100-1000 V DC Max
Safety	Flame retardant grade	UL94 V-0
Electrical	Contact impedance	0.5 mΩ Max
Safety	Fire resistance rating of rubber casing	UL94 V-0
Environment	Waterproof grade	IP54 (Sealed)
	Ambient temperature	-40 °C to 85 °C
