Accessories · TK-X01

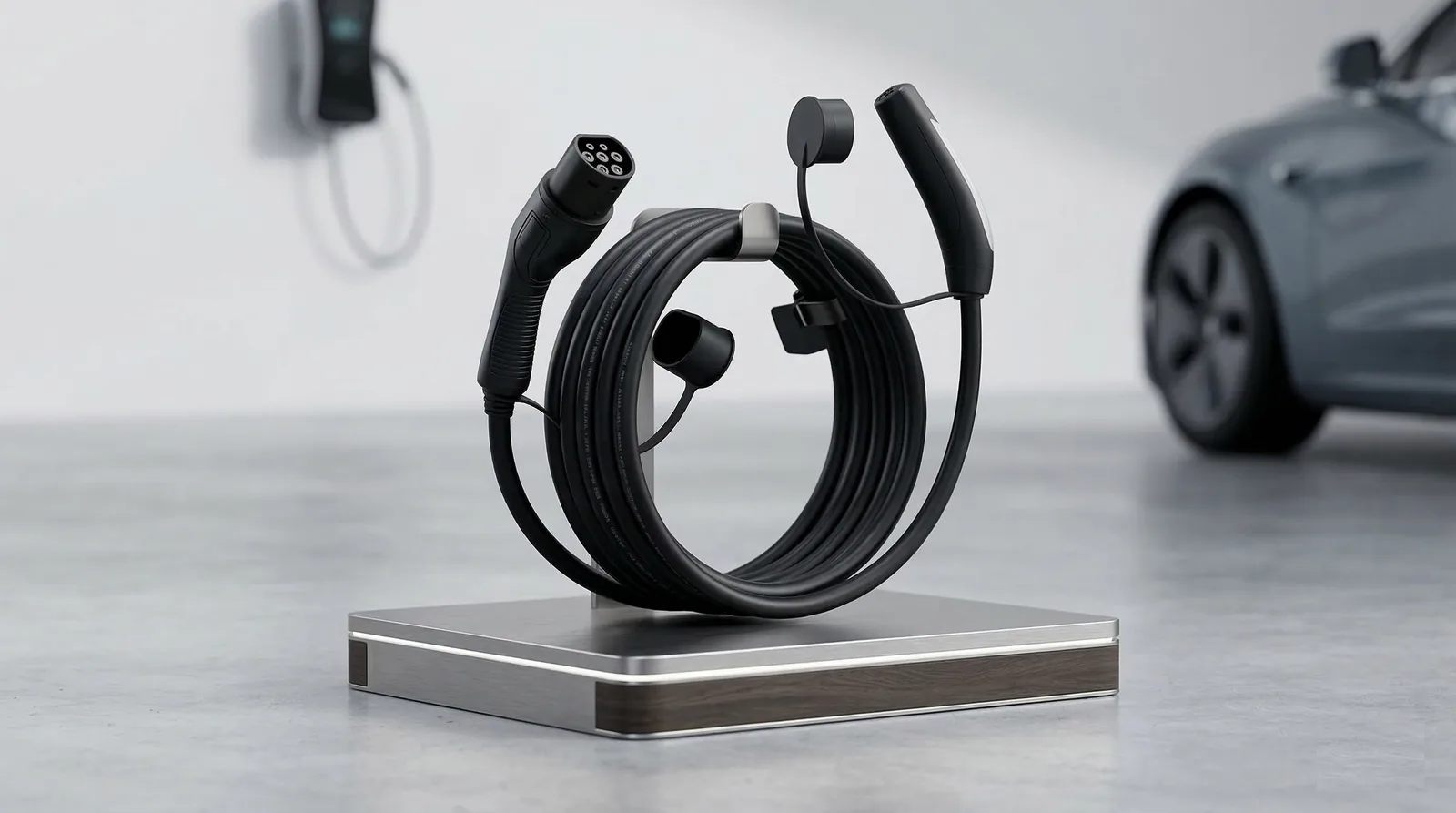

Charging cable, Type 2 tail

3.5–22 kW · Type2 · cable

Power3.5–22 kWConnectorType2FormcableListingCE · UL/ETL pending

MSRP €189 · placeholder

TUKO Direct −10%€170

TUKO Direct price applied automatically; 15% off 2–4 units
5+ units: fleet quote with site design
Not typically covered by utility rebates (cable unit)
Ships with Type 2 (IEC 62196) for Europe

About

What this accessory does

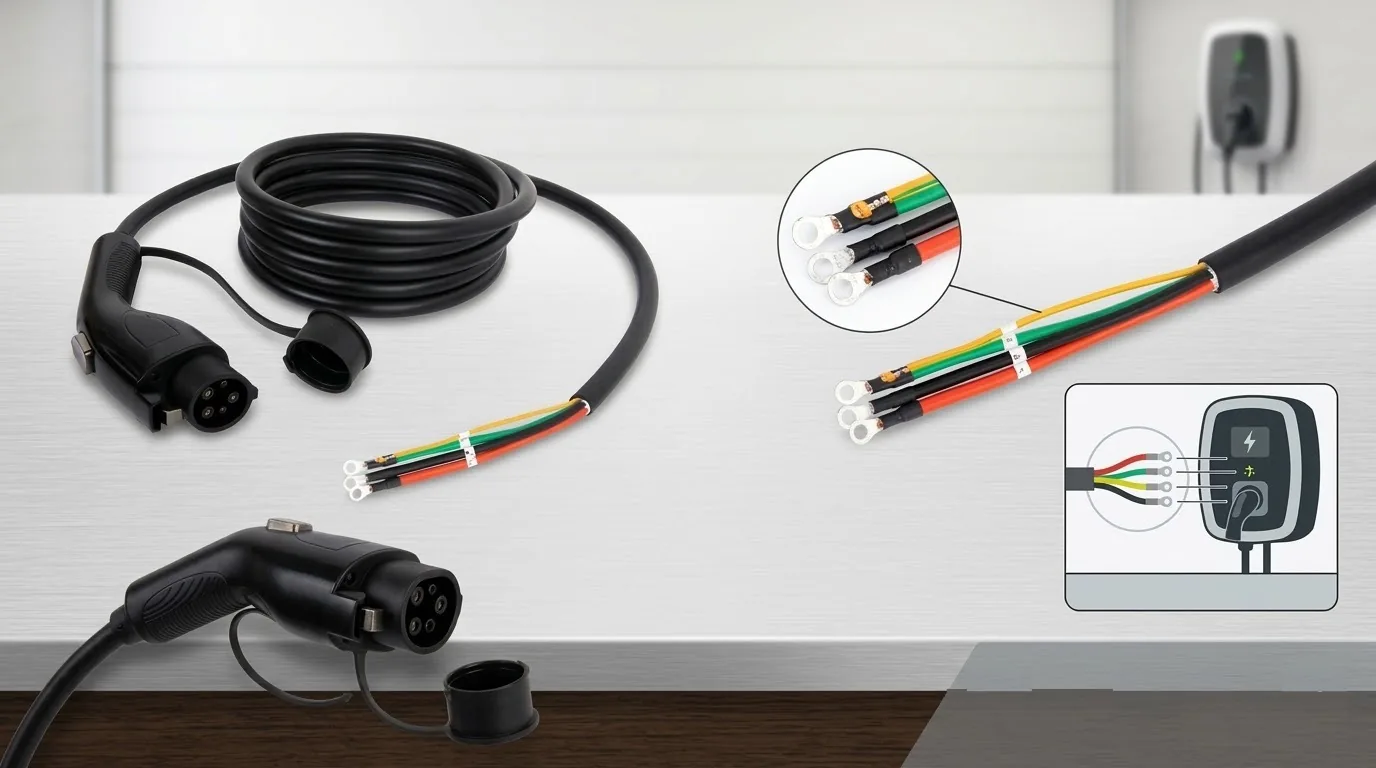

Spare or replacement charging cable, available in Type 1, Type 2, GBT and Tesla versions. Silicone dust cap on the tail and a TPU jacket rated for the life of the cable. Certified CE (TÜV SÜD), TÜV mark, UKCA, ETL, UL, FCC, RoHS, REACH and CB.

Configurations

Power options for Europe

Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.

Type2 / GBT

Power	Voltage	Current
3.5 kW	AC 250V	16A
7 kW	AC 250V	32A
11 kW	AC 250V	16A
22 kW	AC 250V	32A

Specifications

At a glance

SKU	TK-X01
Supplier reference	888037
Power	3.5–22 kW
Connector (Europe)	Type2 — Type 2 (IEC 62196)
Form factor	cable
Certifications	CE · UL/ETL listing pending (required for most US utility rebates)
Markets	Europe

Full datasheet

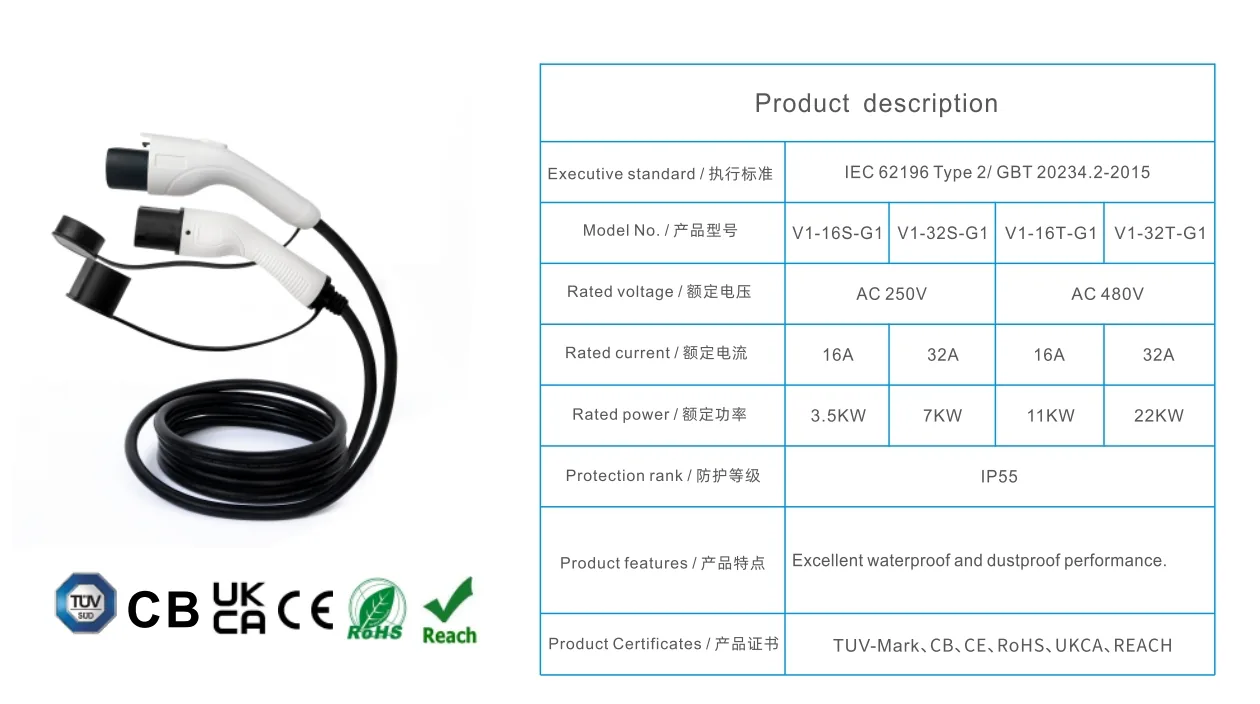

Type 2 / GBT (4.webp)	Executive standard	IEC 62196 Type 2 / GBT 20234.2-2015
	Model No.	V1-16S-G1; V1-32S-G1; V1-16T-G1; V1-32T-G1
	Rated voltage	V1-16S-G1/V1-32S-G1: AC 250 V; V1-16T-G1/V1-32T-G1: AC 480 V
	Rated current	V1-16S-G1: 16 A; V1-32S-G1: 32 A; V1-16T-G1: 16 A; V1-32T-G1: 32 A
	Rated power	V1-16S-G1: 3.5 kW; V1-32S-G1: 7 kW; V1-16T-G1: 11 kW; V1-32T-G1: 22 kW
	Protection rank	IP55
	Product features	Excellent waterproof and dustproof performance.
	Product Certificates	TUV-Mark, CB, CE, RoHS, UKCA, REACH

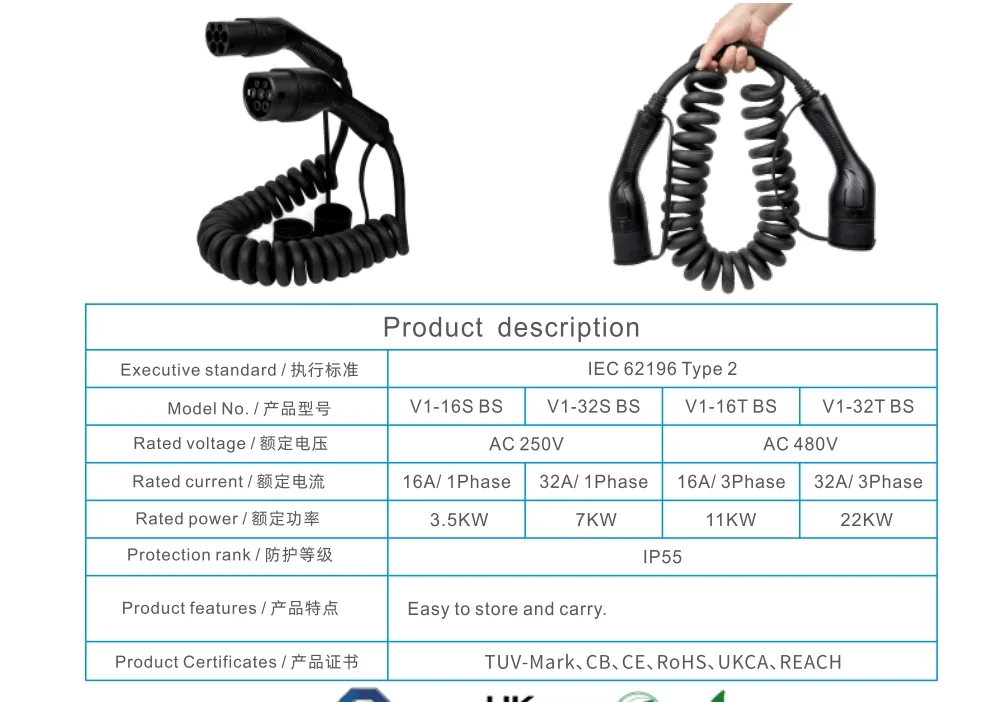

Type 2 coiled (5.webp)	Executive standard	IEC 62196 Type 2
	Model No.	V1-16S BS; V1-32S BS; V1-16T BS; V1-32T BS
	Rated voltage	V1-16S BS/V1-32S BS: AC 250 V; V1-16T BS/V1-32T BS: AC 480 V
	Rated current	V1-16S BS: 16 A / 1 Phase; V1-32S BS: 32 A / 1 Phase; V1-16T BS: 16 A / 3 Phase; V1-32T BS: 32 A / 3 Phase
	Rated power	V1-16S BS: 3.5 kW; V1-32S BS: 7 kW; V1-16T BS: 11 kW; V1-32T BS: 22 kW
	Protection rank	IP55
	Product features	Easy to store and carry.
	Product Certificates	TUV-Mark, CB, CE, RoHS, UKCA, REACH

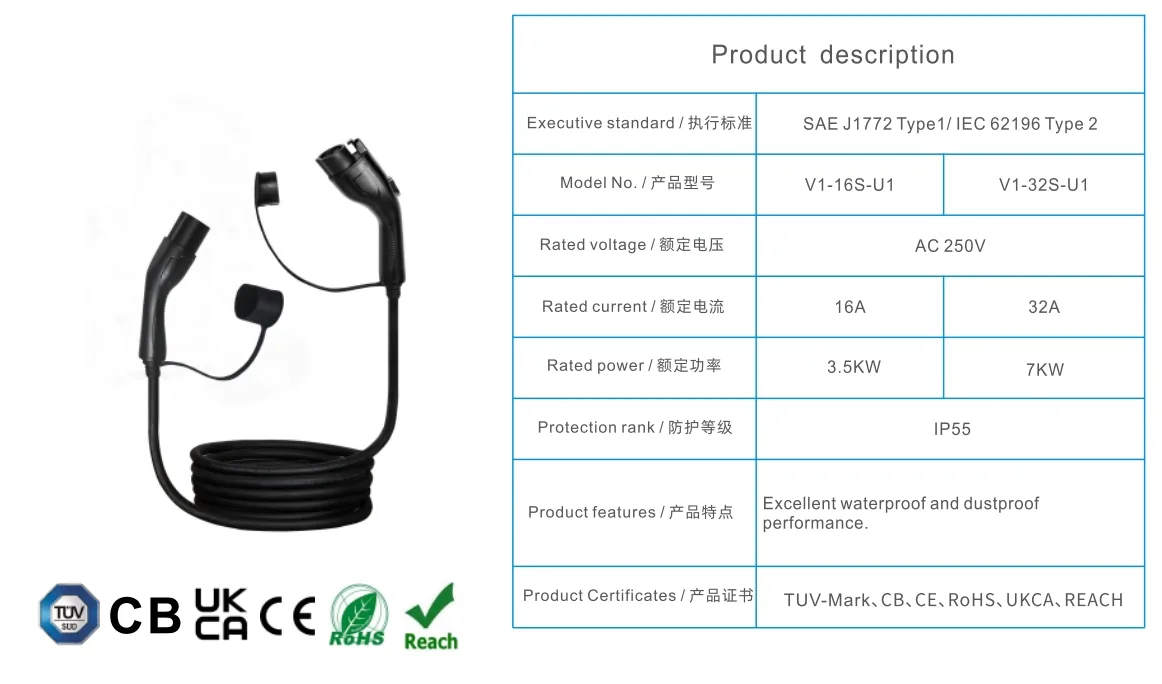

Type 1 to Type 2 (6.webp)	Executive standard	SAE J1772 Type1 / IEC 62196 Type 2
	Model No.	V1-16S-U1; V1-32S-U1
	Rated voltage	AC 250 V
	Rated current	V1-16S-U1: 16 A; V1-32S-U1: 32 A
	Rated power	V1-16S-U1: 3.5 kW; V1-32S-U1: 7 kW
	Protection rank	IP55
	Product features	Excellent waterproof and dustproof performance.
	Product Certificates	TUV-Mark, CB, CE, RoHS, UKCA, REACH

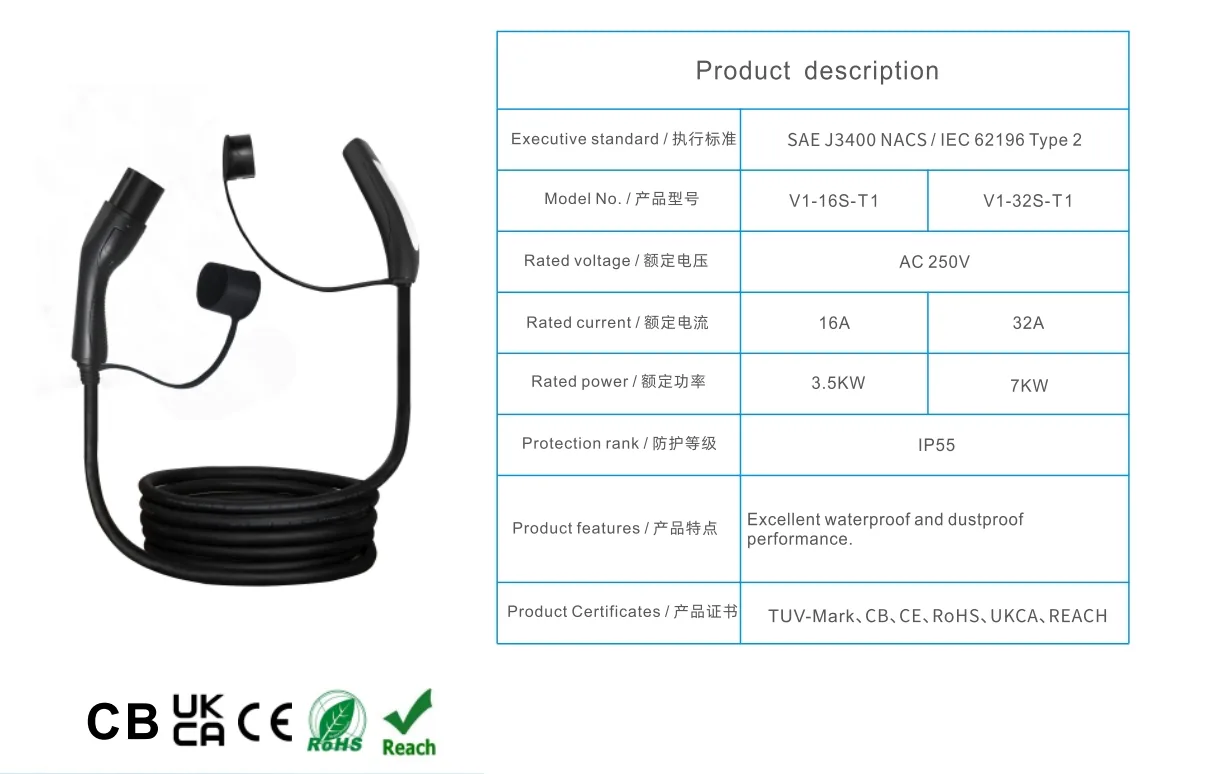

NACS to Type 2 (3.webp)	Executive standard	SAE J3400 NACS / IEC 62196 Type 2
	Model No.	V1-16S-T1; V1-32S-T1
	Rated voltage	AC 250 V
	Rated current	V1-16S-T1: 16 A; V1-32S-T1: 32 A
	Rated power	V1-16S-T1: 3.5 kW; V1-32S-T1: 7 kW
	Protection rank	IP55
	Product features	Excellent waterproof and dustproof performance.
	Product Certificates	TUV-Mark, CB, CE, RoHS, UKCA, REACH
