Portable Socket 1
1.9–7 kW · Type2 · portable
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- Not typically covered by utility rebates (portable unit)
- Ships with Type 2 (IEC 62196) for Europe
What this charger does

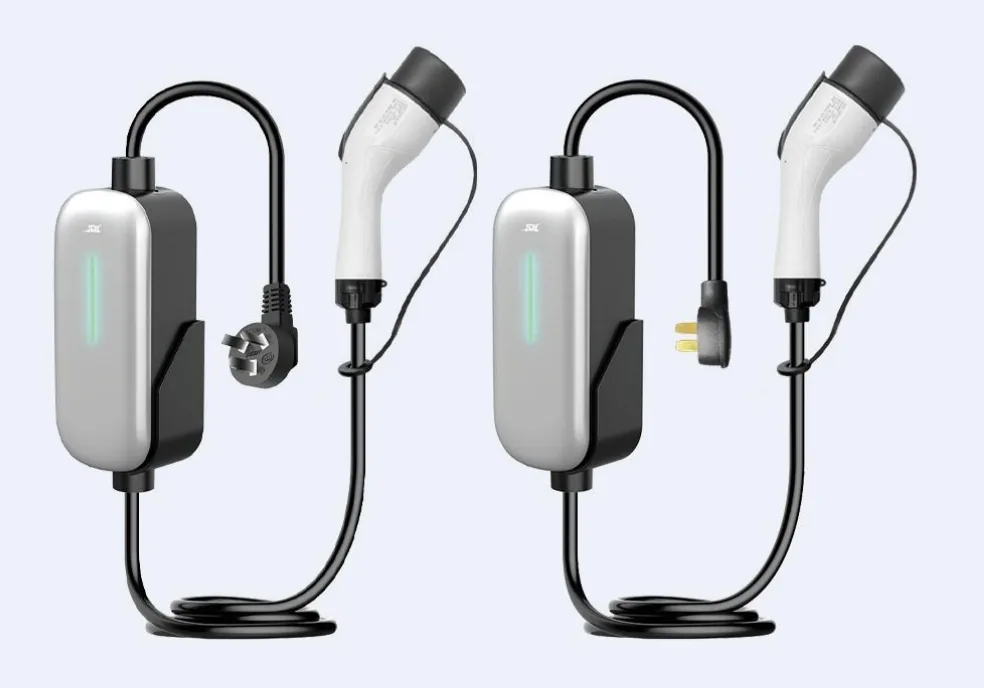

Portable charger that runs from a standard 16 A household socket, no dedicated circuit required. Standby draw is 3 W, a three-color light shows charging status, and a digital display reports live charging data.
What you get
- Portable AC can be charged with the vehicle, and after charging, it can be carried with the vehicle.
- LCD display screen provides a more comprehensive human-machine communication interface.
- Numerical screen display, displaying the relevant basic data of real-time charging of the charging gun.
- Current gear adjustment function and scheduled charging function.
Power options for Europe
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 3.5 kW | 220V | 16A |
| 7 kW | 220V | 32A |
At a glance
| SKU | TK-A10 |
|---|---|
| Supplier reference | 888018 |
| Power | 1.9–7 kW |
| Connector (Europe) | Type2 — Type 2 (IEC 62196) |
| Form factor | portable |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

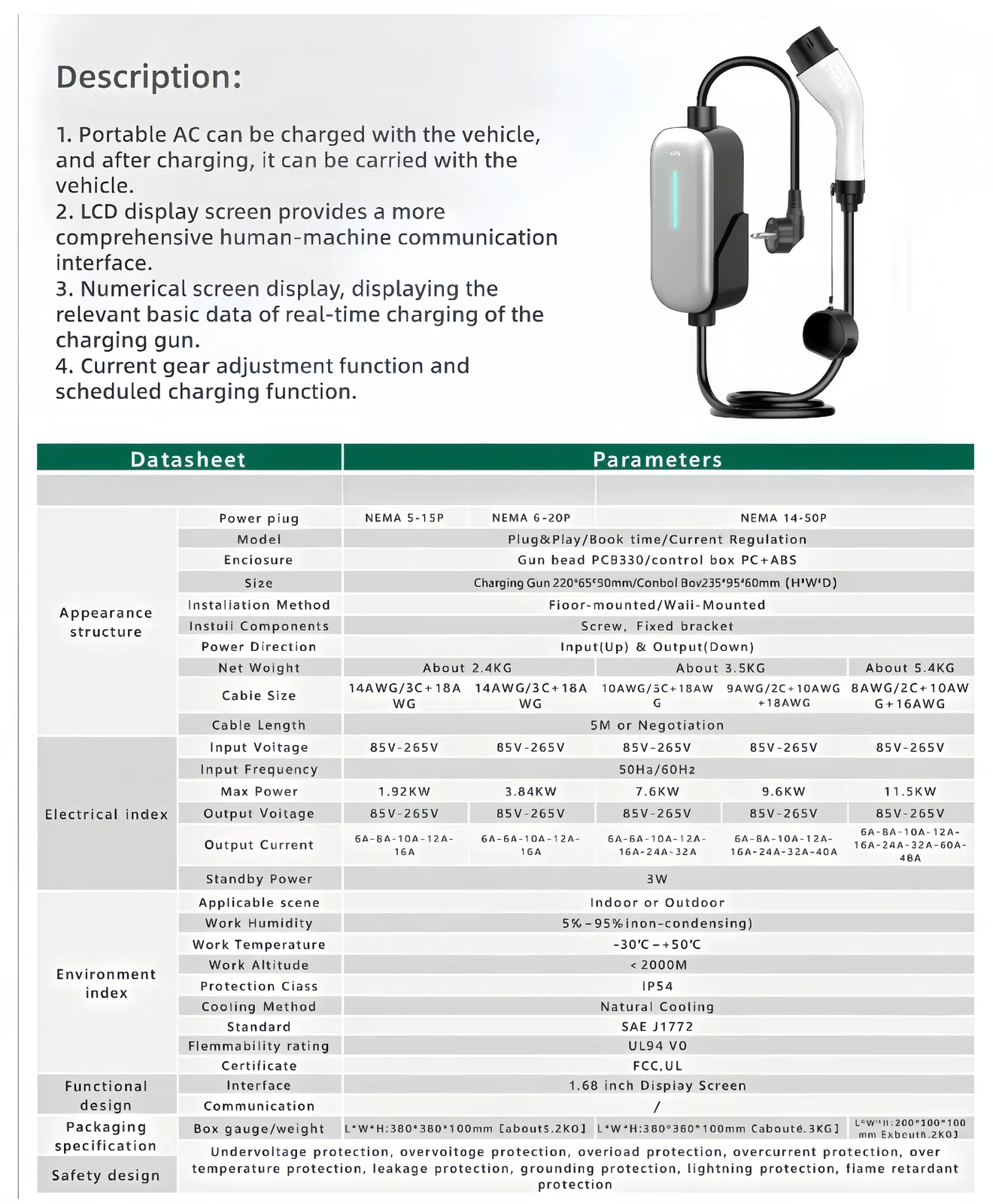

Full datasheet
| Appearance structure | Power plug | 1.92 kW: NEMA 5-15P; 3.84 kW: NEMA 6-20P; 7.6 kW / 9.6 kW / 11.5 kW: NEMA 14-50P |
|---|---|---|
| Model | Plug&Play/Book time/Current Regulation | |
| Enclosure | Gun head PC9330/control box PC+ABS | |
| Size | Charging Gun 220 × 65 × 50 mm / Control Box 235 × 95 × 60 mm (H×W×D) | |
| Installation Method | Floor-mounted/Wall-Mounted | |
| Install Components | Screw, Fixed bracket | |
| Power Direction | Input(Up) & Output(Down) | |
| Net Weight | 1.92 kW / 3.84 kW: About 2.4 kg; 7.6 kW / 9.6 kW: About 3.5 kg; 11.5 kW: About 5.4 kg | |
| Cable Size | 1.92 kW: 14AWG/3C+18AWG; 3.84 kW: 14AWG/3C+18AWG; 7.6 kW: 10AWG/3C+18AWG; 9.6 kW: 9AWG/2C+10AWG+18AWG; 11.5 kW: 8AWG/2C+10AWG+16AWG | |
| Cable Length | 5 m or Negotiation | |
| Electrical index | Input Voltage | 85 V–265 V |
| Input Frequency | 50 Hz/60 Hz | |
| Max Power | 1.92 kW; 3.84 kW; 7.6 kW; 9.6 kW; 11.5 kW | |
| Output Voltage | 85 V–265 V | |
| Output Current | 1.92 kW: 6A-8A-10A-12A-16A; 3.84 kW: 6A-6A-10A-12A-16A; 7.6 kW: 6A-6A-10A-12A-16A-24A-32A; 9.6 kW: 6A-8A-10A-12A-16A-24A-32A-40A; 11.5 kW: 6A-8A-10A-12A-16A-24A-32A-60A-48A | |
| Standby Power | 3 W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5%–95% (non-condensing) | |
| Work Temperature | -30 °C to +50 °C | |
| Work Altitude | < 2000 m | |
| Protection Class | IP54 | |
| Cooling Method | Natural Cooling | |
| Standard | SAE J1772 | |
| Flammability rating | UL94 V0 | |
| Certificate | FCC, UL | |
| Functional design | Interface | 1.68 inch Display Screen |
| Communication | / | |
| Packaging specification | Box gauge/weight | 1.92 kW / 3.84 kW: 380 × 360 × 100 mm (L×W×H); 7.6 kW / 9.6 kW: 380 × 360 × 100 mm (L×W×H); 11.5 kW: 200 × 100 × 100 mm (L×W×H) |
| Safety design | Safety design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
