Accessories · TK-X04

Adapter set, CCS1 vehicle

— · CCS1 · adapter

Power—ConnectorCCS1FormadapterListingCE · UL/ETL pending

MSRP $149 · placeholder

TUKO Direct −10%$134

TUKO Direct price applied automatically; 15% off 2–4 units
5+ units: fleet quote with site design
Not typically covered by utility rebates (adapter unit)
Ships with Type 1 (SAE J1772) for United States

About

What this accessory does

DC and AC adapters that let a CCS1 vehicle charge from CCS2, GBT, Type 2, Tesla or CHAdeMO equipment. Rated to 1000 V DC and 250 A. Pick the conversion you need from the list below.

Configurations

Power options for United States

Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.

Standard

Power	Voltage	Current
CCS1 to CCS2 dc	100 ~ 1000V DC Max	250A Max
CCS1 to CCS2 dc+ac	100 ~ 1000V DC Max	250A Max
CCS1 to GBT dc	100 ~ 1000V DC Max	250A Max
CCS1 to Type2 ac	100 ~ 1000V DC Max	250A Max
CCS1 to Tesla dc+ac	100 ~ 1000V DC Max	250A Max
CCS1 to CHAdeMo dc	100 ~ 1000V DC Max	250A Max

Specifications

At a glance

SKU	TK-X04
Supplier reference	888040
Power	—
Connector (United States)	CCS1 — Type 1 (SAE J1772)
Form factor	adapter
Certifications	CE · UL/ETL listing pending (required for most US utility rebates)
Markets	United States

Full datasheet

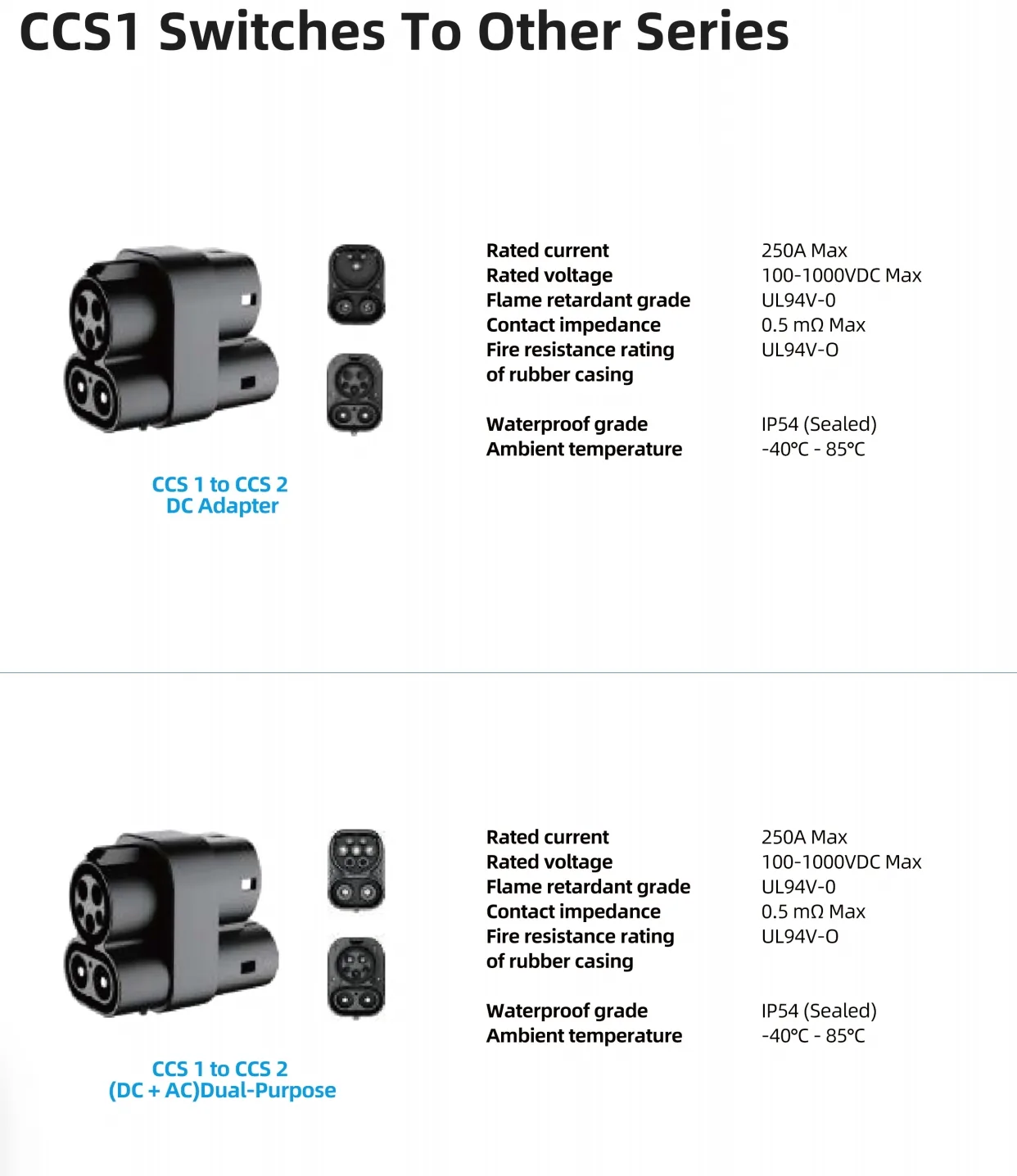

CCS 1 to CCS 2 DC Adapter	Rated current	250 A Max
	Rated voltage	100–1000 V DC Max
	Flame retardant grade	UL94V-0
	Contact impedance	0.5 mΩ Max
	Fire resistance rating of rubber casing	UL94V-0
	Waterproof grade	IP54 (Sealed)
	Ambient temperature	-40 °C to 85 °C
CCS 1 to CCS 2 (DC + AC) Dual-Purpose	Rated current	250 A Max
	Rated voltage	100–1000 V DC Max
	Flame retardant grade	UL94V-0
	Contact impedance	0.5 mΩ Max
	Fire resistance rating of rubber casing	UL94V-0
	Waterproof grade	IP54 (Sealed)
	Ambient temperature	-40 °C to 85 °C

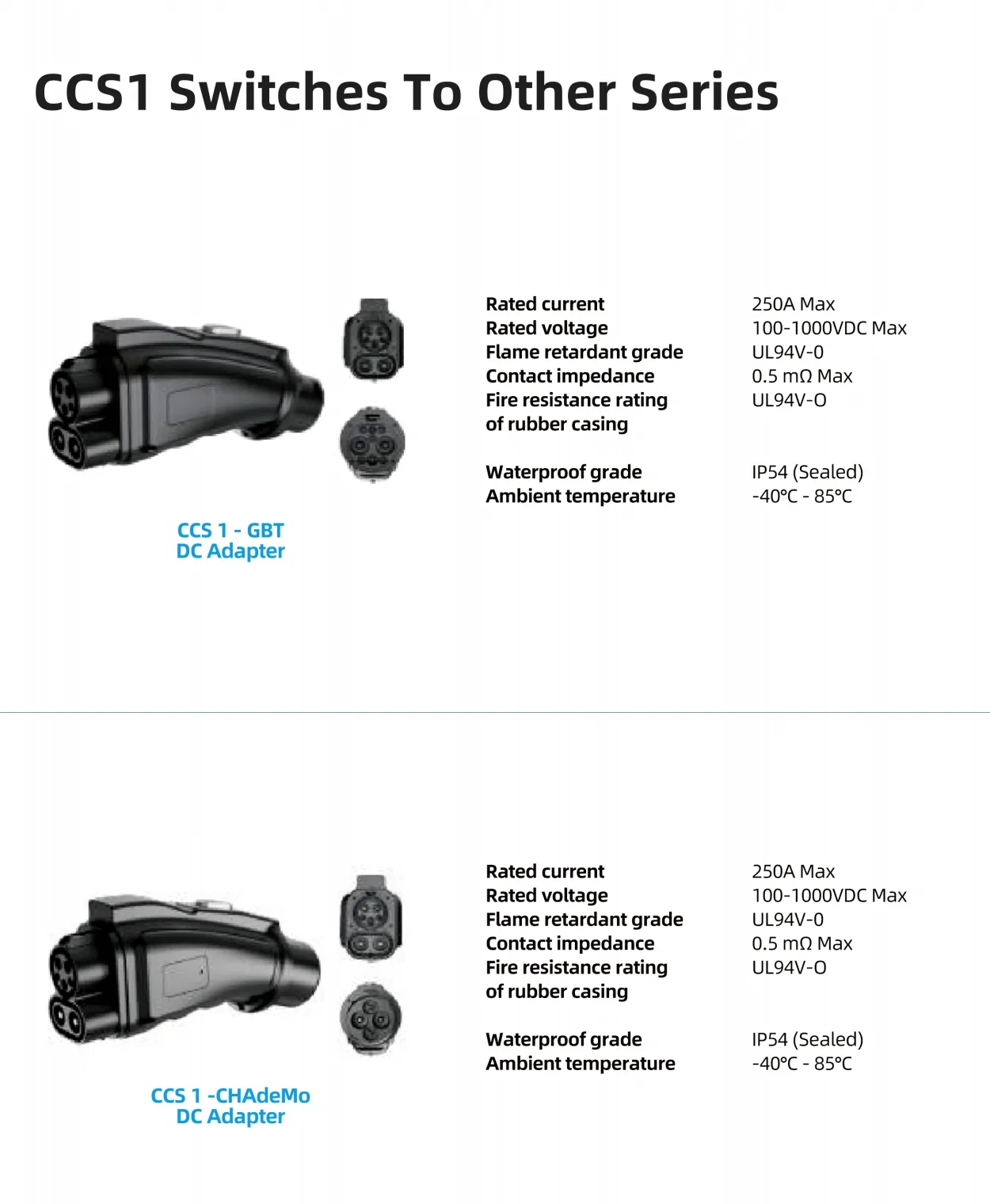

CCS 1 - GBT DC Adapter	Rated current	250 A Max
	Rated voltage	100–1000 V DC Max
	Flame retardant grade	UL94V-0
	Contact impedance	0.5 mΩ Max
	Fire resistance rating of rubber casing	UL94V-0
	Waterproof grade	IP54 (Sealed)
	Ambient temperature	-40 °C to 85 °C
CCS 1 - CHAdeMO DC Adapter	Rated current	250 A Max
	Rated voltage	100–1000 V DC Max
	Flame retardant grade	UL94V-0
	Contact impedance	0.5 mΩ Max
	Fire resistance rating of rubber casing	UL94V-0
	Waterproof grade	IP54 (Sealed)
	Ambient temperature	-40 °C to 85 °C

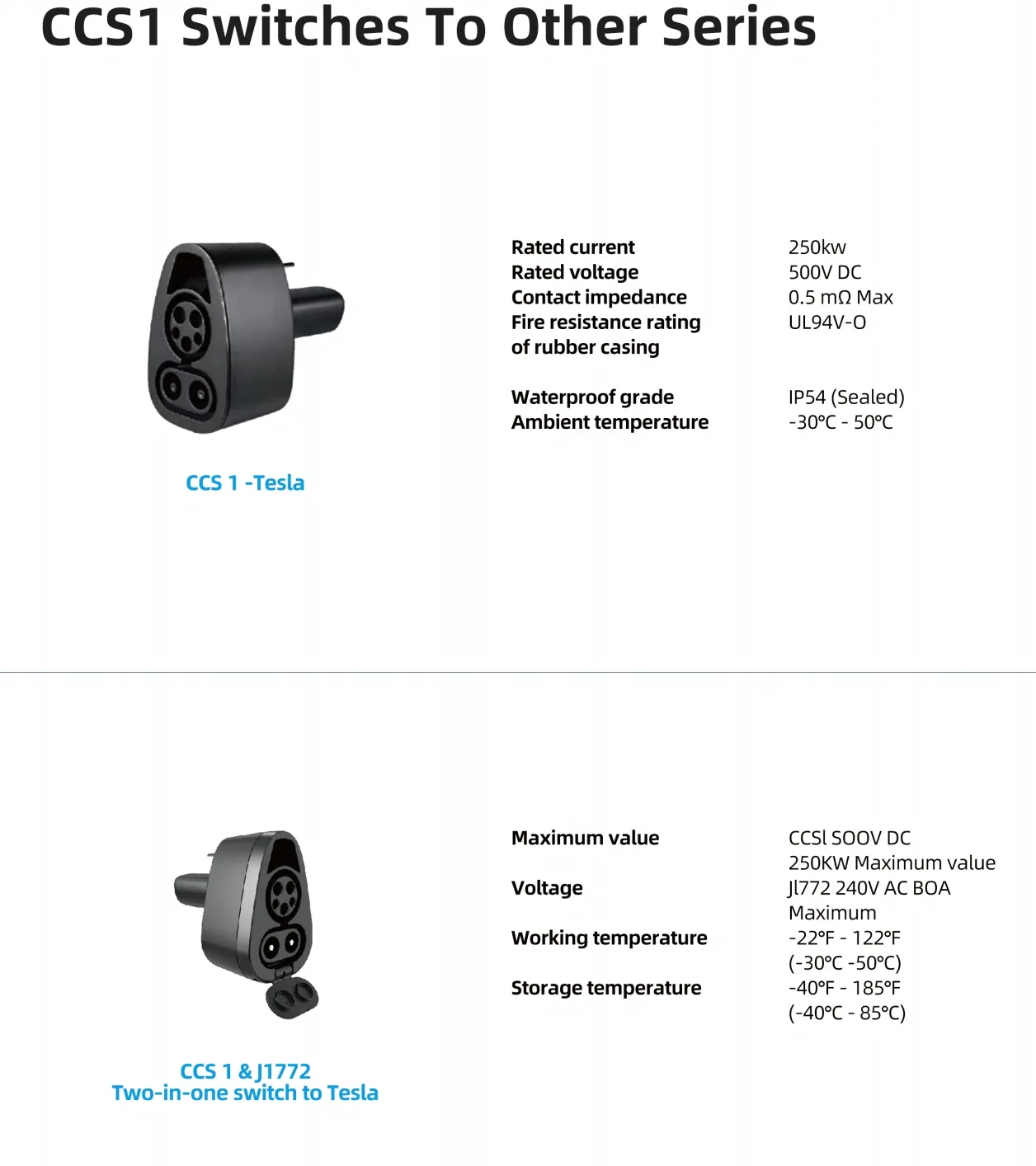

CCS 1 - Tesla	Rated current	250kw
	Rated voltage	500 V DC
	Contact impedance	0.5 mΩ Max
	Fire resistance rating of rubber casing	UL94V-0
	Waterproof grade	IP54 (Sealed)
	Ambient temperature	-30 °C to 50 °C
CCS 1 & J1772 Two-in-one switch to Tesla	Maximum value	CCS1 500 V DC, 250 kW Maximum value
	Voltage	J1772 240 V AC 80 A Maximum
	Working temperature	-22 °F to 122 °F (-30 °C to 50 °C)
	Storage temperature	-40 °F to 185 °F (-40 °C to 85 °C)
