DC Mobile 30–80 kW
30–80 kW · CCS1 · mobile
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- State and NEVI funding may apply — see what is available
- Ships with Type 1 (SAE J1772) for United States

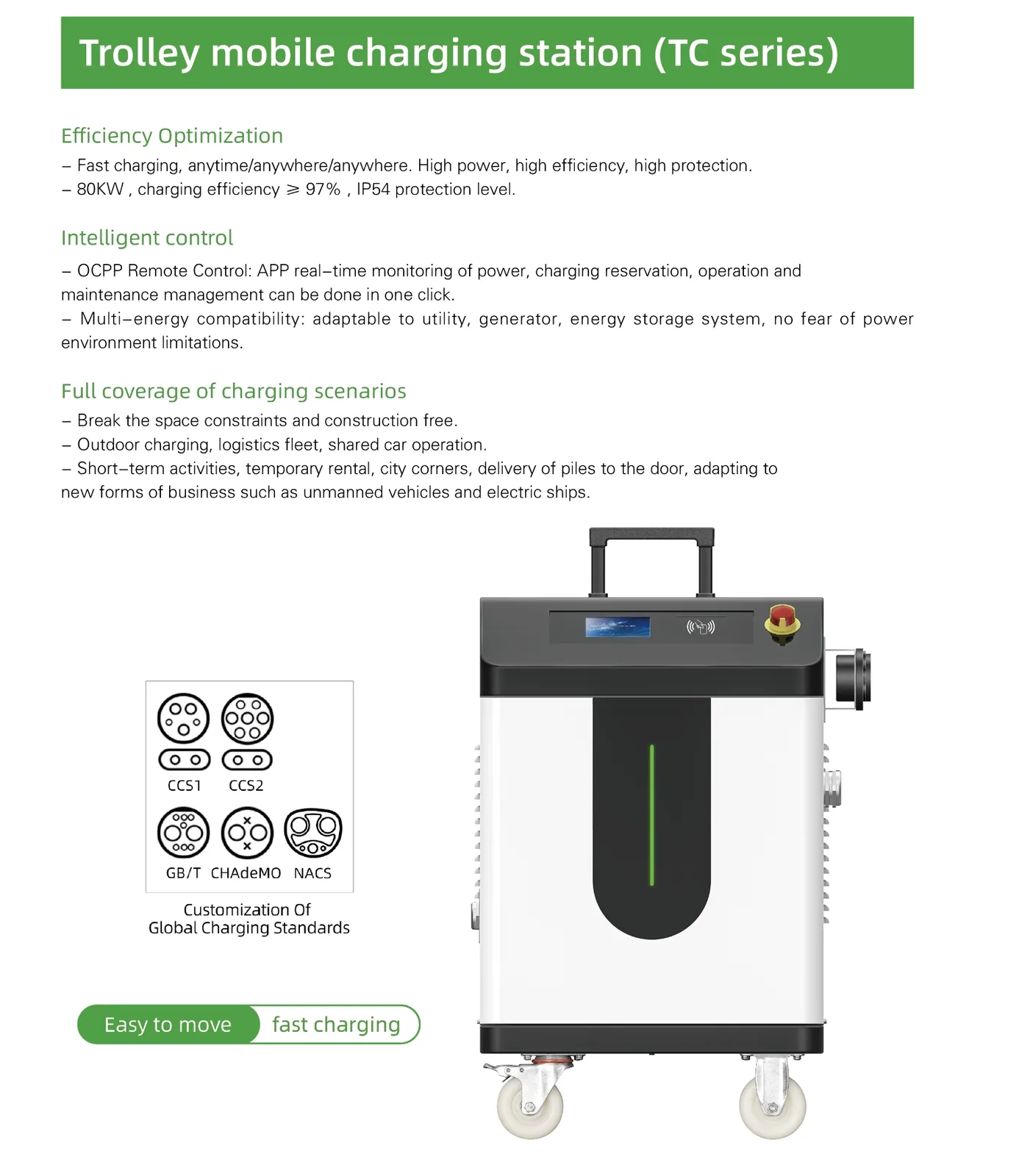

What this charger does

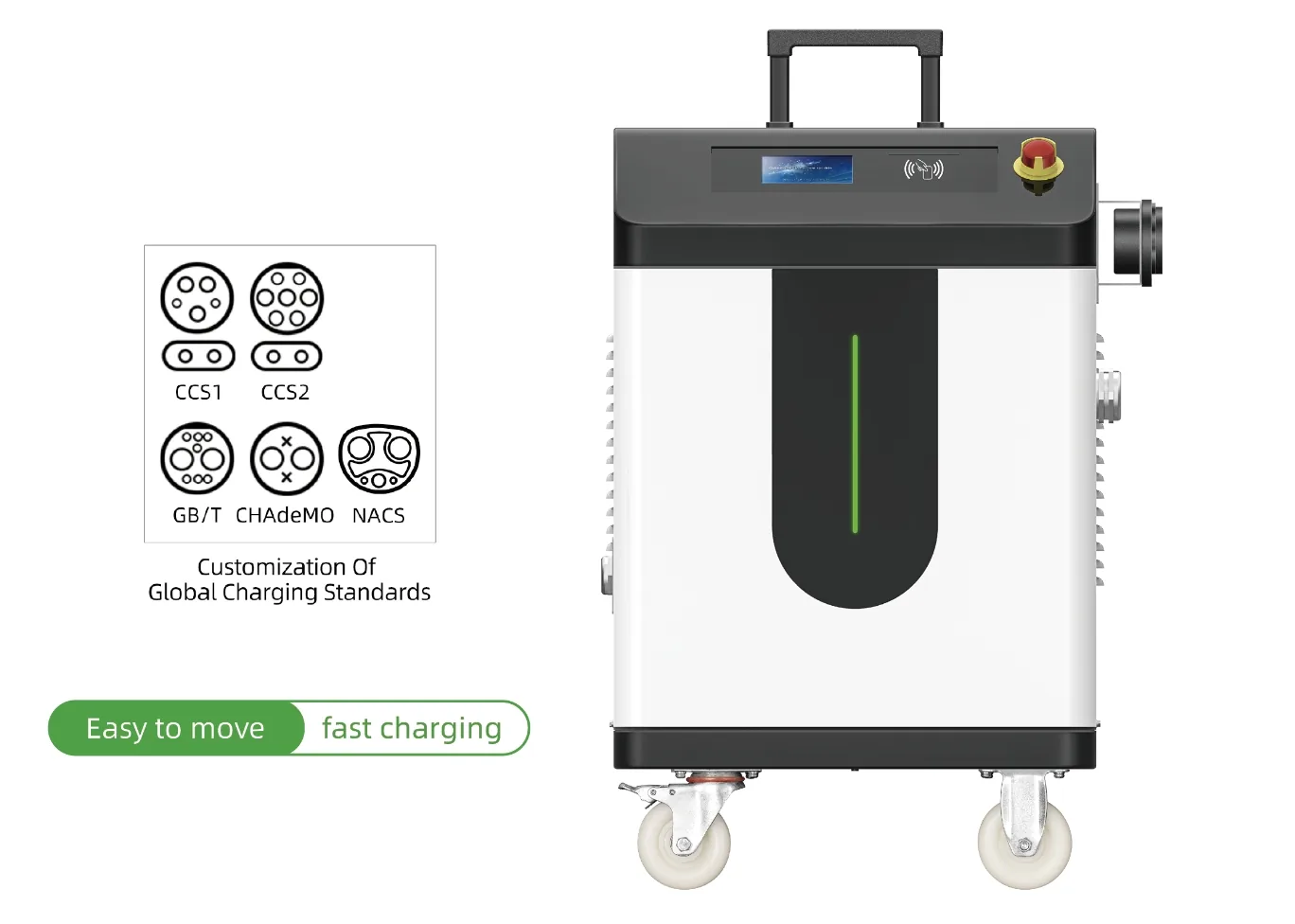

Mobile DC fast charger, CCS1 / CCS2, for depots, dealerships, roadside assistance and events — charge anywhere there is power. Configurations listed below; full datasheet on request.
What you get
- Efficiency Optimization: Fast charging, anytime/anywhere. High power, high efficiency, high protection.
- Efficiency Optimization: 80KW, charging efficiency ≥ 97%, IP54 protection level.
- Intelligent control: OCPP Remote Control: APP real-time monitoring of power, charging reservation, operation and maintenance management can be done in one click.
- Intelligent control: Multi-energy compatibility: adaptable to utility, generator, energy storage system, no fear of power environment limitations.
- Full coverage of charging scenarios: Break the space constraints and construction free.
- Full coverage of charging scenarios: Outdoor charging, logistics fleet, shared car operation.
- Full coverage of charging scenarios: Short-term activities, temporary rental, city corners, delivery of piles to the door, adapting to new forms of business such as unmanned vehicles and electric ships.
Power options for United States
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 30 kW | 200 ~ 1000V | 100A |
| 40 kW | 200 ~ 1000V | 120A |
| 60 kW | 200 ~ 1000V | 200A |
| 80 kW | 200 ~ 1000V | 220A |
At a glance
| SKU | TK-D11 |
|---|---|
| Supplier reference | 888043 |
| Power | 30–80 kW |
| Connector (United States) | CCS1 — CCS1 |
| Form factor | mobile |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

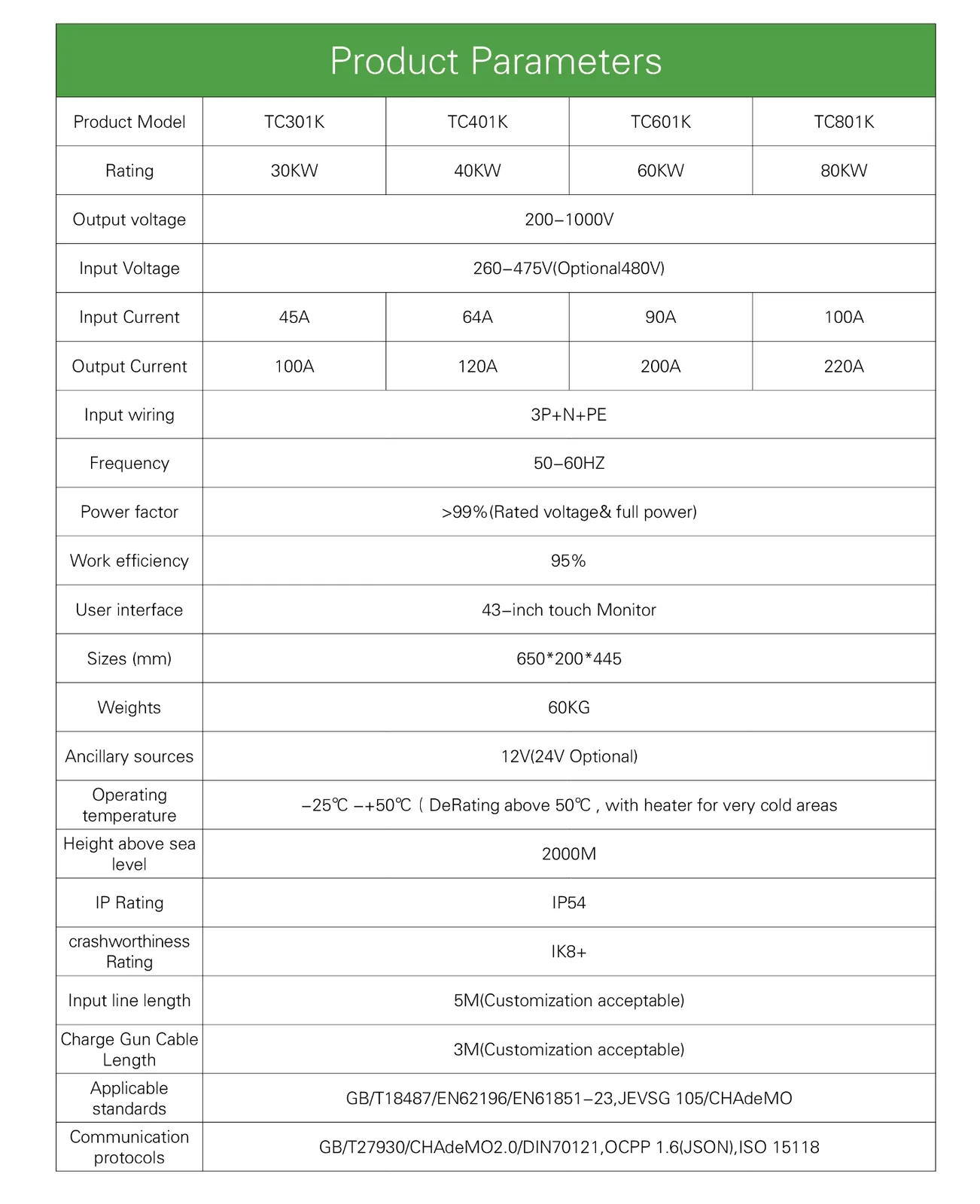

Full datasheet
| General | Product Model | TC301K; TC401K; TC601K; TC801K |
|---|---|---|
| Rating | TC301K: 30 kW; TC401K: 40 kW; TC601K: 60 kW; TC801K: 80 kW | |
| Output | Output voltage | 200-1000 V |
| Input | Input Voltage | 260-475 V (Optional 480 V) |
| Input Current | TC301K: 45 A; TC401K: 64 A; TC601K: 90 A; TC801K: 100 A | |
| Output | Output Current | TC301K: 100 A; TC401K: 120 A; TC601K: 200 A; TC801K: 220 A |
| Input | Input wiring | 3P+N+PE |
| Frequency | 50-60 Hz | |
| Power factor | >99% (Rated voltage & full power) | |
| General | Work efficiency | 95% |
| User interface | 43-inch touch Monitor | |
| Mechanical | Sizes (mm) | 650 × 200 × 445 |
| Weights | 60 kg | |
| General | Ancillary sources | 12 V (24 V Optional) |
| Environment | Operating temperature | -25 °C to +50 °C (DeRating above 50 °C, with heater for very cold areas) |
| Height above sea level | 2000 m | |
| IP Rating | IP54 | |
| Crashworthiness Rating | IK8+ | |
| Mechanical | Input line length | 5 m (Customization acceptable) |
| Charge Gun Cable Length | 3 m (Customization acceptable) | |
| Standards | Applicable standards | GB/T18487 / EN62196 / EN61851-23, JEVS G 105 / CHAdeMO |
| Communication protocols | GB/T27930 / CHAdeMO 2.0 / DIN70121, OCPP 1.6 (JSON), ISO 15118 |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
State programs and NEVI
Public money for commercial charging
Utility rebates cover home chargers. For DC fast charging, the money comes from state programs and the federal NEVI program (National Electric Vehicle Infrastructure), and it depends on where the site is and who uses it. Tell us the site address and how many vehicles, and we will lay out what is available in your state and what it takes to qualify.
No cost, no commitment — a site address and rough vehicle count is enough to start.
