DC Mobile 7–20 kW
7–20 kW · CCS1 · mobile
- TUKO Direct price applied automatically; 15% off 2–4 units
- 5+ units: fleet quote with site design
- State and NEVI funding may apply — see what is available
- Ships with Type 1 (SAE J1772) for United States
What this charger does

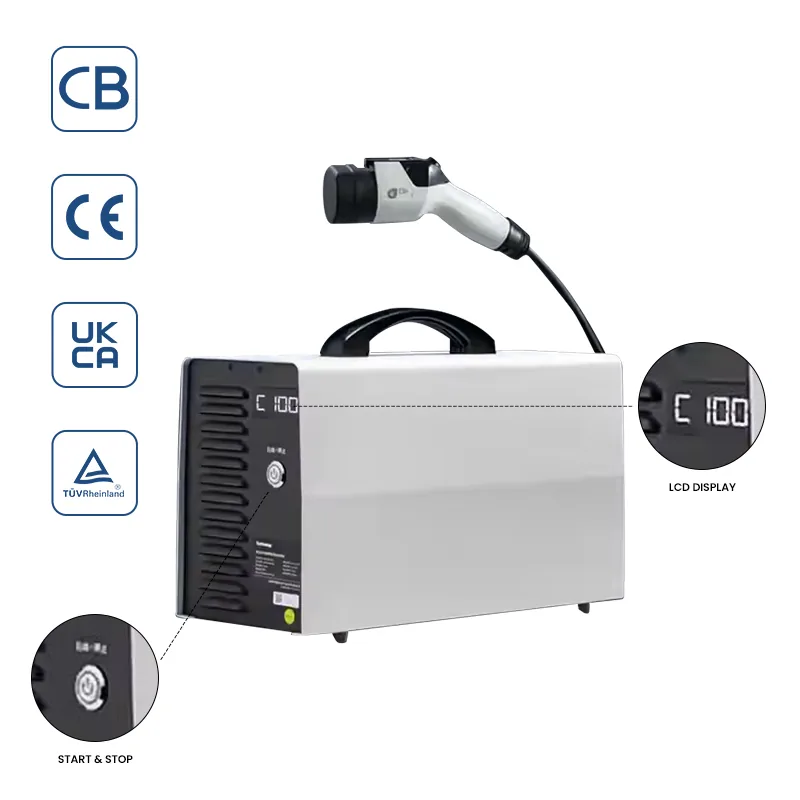

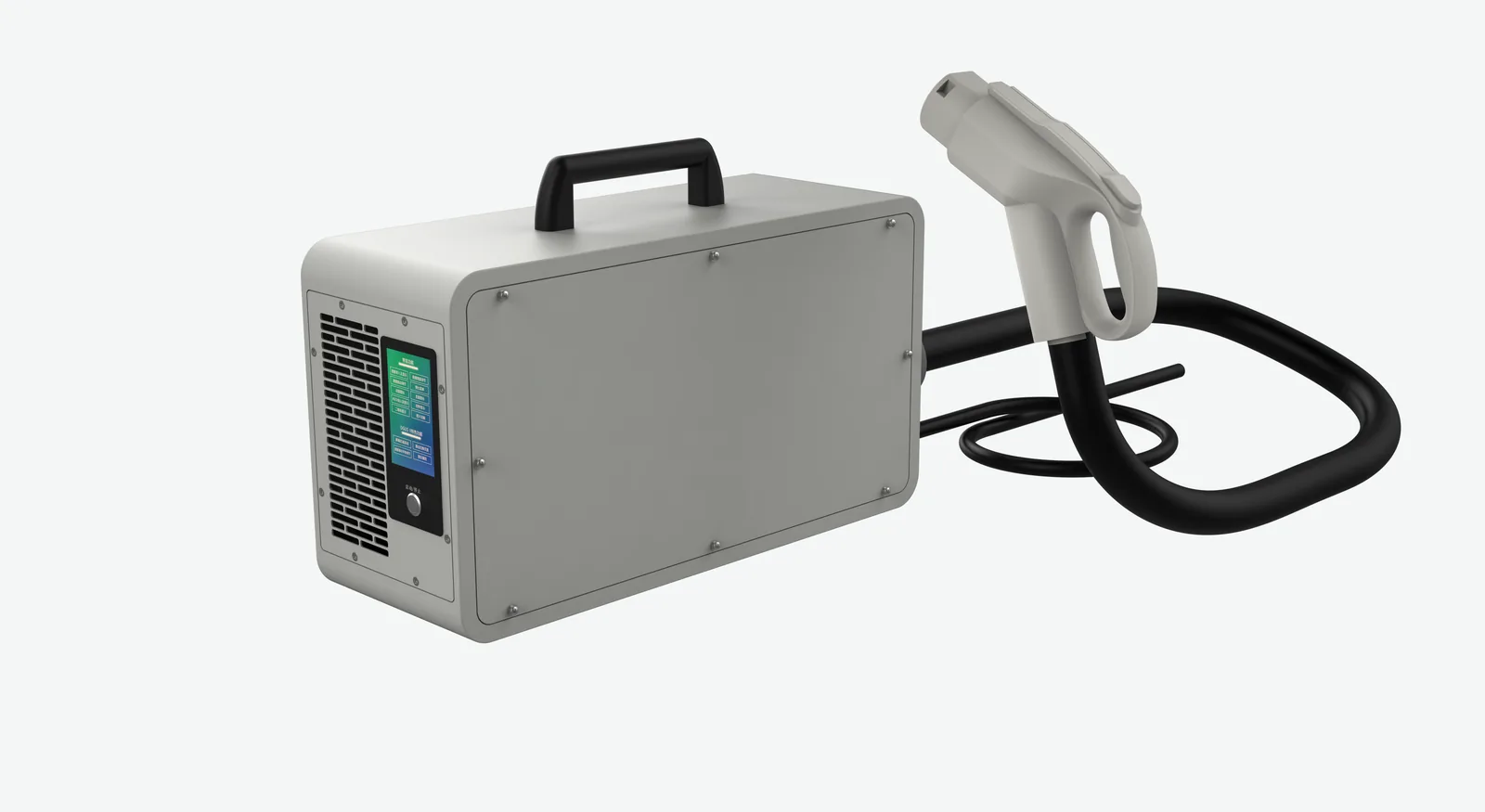

Mobile DC fast charger on wheels for depots, dealerships, roadside assistance and events — charge anywhere there is power. IP54-rated with the same protections as our fixed DC units. The home version starts on plug-in, card, password, Bluetooth or schedule; the networked version adds app authorization, Wi-Fi, and OCPP with dynamic load balancing.
What you get
- Patented design: Fashionable patented design, small and lightweight.
- IP43 protection level: Equipped with protection functions such as overvoltage, undervoltage, overload, short circuit, leakage, battery anti reverse, etc.
- Home version: can be configured with plug and play charging, card swiping, password, Bluetooth, and scheduled charging.
- Online version: swiping card, VIN code, WeChat, Alipay scanning code, mobile APP, WIFI, Mini programs, etc; The foreign version can be configured with OCPP and supports DLB.
Power options for United States
Pick the configuration that matches your panel and vehicle; the price shown covers the base unit and we confirm the configuration at order.
| Power | Voltage | Current |
|---|---|---|
| 7 kW | 200 ~ 750V DC | 17A |
| 15 kW | 200 ~ 750V DC | 37A |
| 20 kW | 200 ~ 750V DC | 50A |
At a glance
| SKU | TK-D08 |
|---|---|
| Supplier reference | 888030 |
| Power | 7–20 kW |
| Connector (United States) | CCS1 — CCS1 |
| Form factor | mobile |
| Certifications | CE · UL/ETL listing pending (required for most US utility rebates) |
| Markets | United States, Europe |

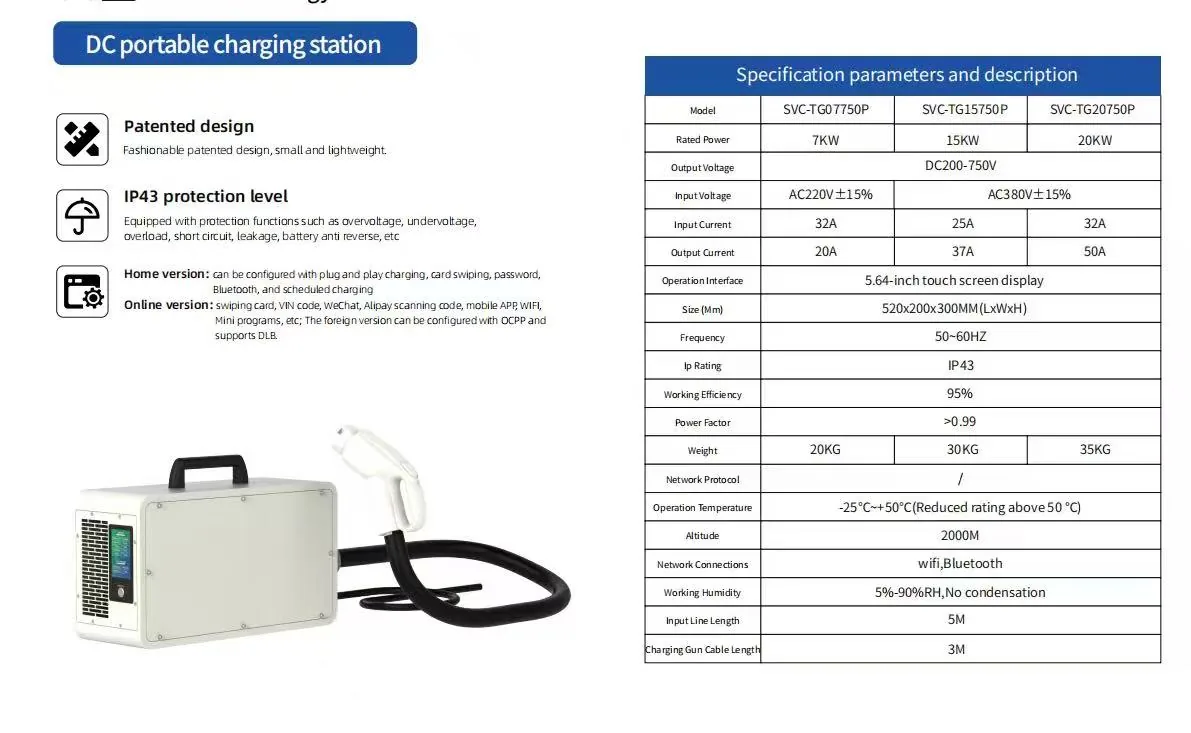

Full datasheet
| General | Model | SVC-TG07750P; SVC-TG15750P; SVC-TG20750P |
|---|---|---|
| Output | Rated Power | SVC-TG07750P: 7 kW; SVC-TG15750P: 15 kW; SVC-TG20750P: 20 kW |
| Output Voltage | DC 200–750 V | |
| Input | Input Voltage | SVC-TG07750P: AC 220 V ±15%; SVC-TG15750P / SVC-TG20750P: AC 380 V ±15% |
| Input Current | SVC-TG07750P: 32 A; SVC-TG15750P: 25 A; SVC-TG20750P: 32 A | |
| Output | Output Current | SVC-TG07750P: 20 A; SVC-TG15750P: 37 A; SVC-TG20750P: 50 A |
| General | Operation Interface | 5.64-inch touch screen display |
| Mechanical | Size (mm) | 520 × 200 × 300 mm (L×W×H) |
| Input | Frequency | 50~60 Hz |
| Environment | IP Rating | IP43 |
| Electrical Parameter | Working Efficiency | 95% |
| Power Factor | >0.99 | |
| Mechanical | Weight | SVC-TG07750P: 20 kg; SVC-TG15750P: 30 kg; SVC-TG20750P: 35 kg |
| Communication | Network Protocol | / |
| Environment | Operation Temperature | -25 °C to +50 °C (Reduced rating above 50 °C) |
| Altitude | 2000 m | |
| Communication | Network Connections | wifi, Bluetooth |
| Environment | Working Humidity | 5%–90% RH, No condensation |
| Mechanical | Input Line Length | 5 m |
| Charging Gun Cable Length | 3 m |
Manufacturer data, transcribed from the product datasheet. Values vary by configuration; we confirm the exact build at order.
State programs and NEVI
Public money for commercial charging
Utility rebates cover home chargers. For DC fast charging, the money comes from state programs and the federal NEVI program (National Electric Vehicle Infrastructure), and it depends on where the site is and who uses it. Tell us the site address and how many vehicles, and we will lay out what is available in your state and what it takes to qualify.
No cost, no commitment — a site address and rough vehicle count is enough to start.
